Web Filtering¶

Web filtering controls which websites and internet services users on the network are permitted to access. Three complementary methods are available, each operating at a different layer:

Method	How it works	Granularity	Bypass resistance
Firewall Rules + Objects	Blocks actual TCP/UDP connections by IP, subnet, FQDN, or application	Rule-level — precise per source/destination control	High — blocks at connection level regardless of DNS
DNS Filtering	Intercepts DNS queries and returns no address for blocked domains	Domain-level — covers all subdomains automatically	Moderate — can be bypassed by DoH or hardcoded DNS
Cloud DNS Category Filtering	Routes DNS through a cloud resolver enforcing category-based policies	Category-level — managed lists, no manual domain maintenance	Moderate — same DNS-layer caveats; combines well with Method 1

These methods can be used independently or combined. A typical layered deployment uses firewall rules for application-level blocking, DNS filtering for custom domain controls, and cloud DNS for broad category enforcement across all sites.

Method 1: Firewall Rules with Objects¶

This method uses firewall-access rules combined with Firewall Objects to permit or deny traffic based on IP addresses, subnets, FQDNs, or application signatures. Unlike DNS filtering, it operates at the connection level — a client that successfully resolves a domain will still be blocked if a matching firewall rule denies the connection.

When to use this method:

Blocking specific applications (e.g. deny all traffic to Facebook's IP ranges)
Denying access to known malicious IP ranges
Permitting only approved destinations from a guest or IoT network
Environments where DNS bypass (DoH, hardcoded DNS) is a concern

How it works:

Define a Firewall Object containing the destinations to block or permit — using net (IP/subnet), fqdn (domain), or app (application, with IP lists maintained by the cloud).
Create a firewall-access rule referencing that object as the source or destination.

GUI Configuration¶

Navigate to ORCHESTRATOR → Templates → Object Groups, create a Firewall Object with the destinations to control. Then navigate to Device Settings → Security → Firewall Policies and add an access rule using Object as the destination type.

See Firewall Objects and Firewall Policies for full configuration details.

CLI Configuration¶

Block specific applications by name:

object-group blocked_apps
  app Facebook
  app TikTok
  app YouTube

firewall-access 100 deny outbound eth0 dst_object blocked_apps

Block a set of IP ranges and domains:

object-group blocked_sites
  net 203.0.113.0/24
  fqdn malicious-site.example.com

firewall-access 110 deny all dst_object blocked_sites

Permit only approved destinations (default-deny approach):

object-group approved_dst
  fqdn corporate.example.com
  net 10.0.0.0/8

firewall-access 100 permit outbound eth0 dst_object approved_dst
firewall-access 200 deny outbound eth0

Key points:

app entries use cloud-maintained IP lists that update automatically — no manual IP management needed for well-known applications
fqdn entries in objects are resolved periodically; resulting IPs are matched against connection destinations — this differs from DNS filtering which intercepts the query itself
Rules are evaluated top-to-bottom; place more specific permits before a broad deny

Method 2: DNS Filtering¶

DNS filtering intercepts client DNS queries at the router and returns a controlled response — either no address (blocking) or a normal upstream resolution (permitting). Because filtering happens at the DNS layer, it requires no changes on client devices and applies to all clients on the network.

Before configuring DNS filtering, ensure the router is intercepting client DNS queries. See DNS & DNS Rewrite for setup details, including the DNAT rule that transparently redirects port 53 traffic from clients regardless of what DNS server they have configured.

Blacklisting — Block Specific Domains¶

Default-permit: all domains resolve normally except those explicitly blocked.

Note

Blocking a domain also blocks all its subdomains. Blocking yahoo.com also blocks mail.yahoo.com, finance.yahoo.com, and so on.

CLI Configuration

ip name-server 8.8.8.8 8.8.4.4
firewall-dnat 10 redirect inbound eth1 udp dport 53

ip host facebook.com reject
ip host youtube.com reject
ip host tiktok.com reject

To remove a block:

no ip host facebook.com reject

Whitelisting — Allow Only Approved Domains¶

Default-deny: all domains are blocked unless explicitly permitted. The wildcard entry ip host . reject blocks everything by default; individual ip host <domain> resolve entries override it for approved domains.

Note

Many sites and services depend on multiple domains — CDNs, authentication endpoints, API services, and analytics. Permitting a site requires permitting all its supporting domains. Use tcpdump or DNS query logging to identify them.

CLI Configuration

ip name-server 8.8.8.8 8.8.4.4
firewall-dnat 10 redirect inbound eth1 udp dport 53

ip host . reject

ip host google.com resolve
ip host googleapis.com resolve
ip host gstatic.com resolve
ip host youtube.com resolve
ip host ytimg.com resolve
ip host ransnet.com resolve

To remove the default-deny and restore normal resolution:

no ip host . reject

GUI Configuration¶

Navigate to Device Settings → System, scroll to Static FQDN-IP Mapping, click + Add.

To block a domain: enter the domain and set the action to Block
To whitelist a domain under a default-deny policy: enter the domain and set the action to Resolve

Identifying Required Domains¶

When whitelisting, use tcpdump on the router to capture all DNS queries clients make while browsing a target site:

tcpdump interface eth1 port 53 detail

Watch the output while navigating the site fully — including login, media loading, and background API calls. Add each unresolved domain to the whitelist with ip host <domain> resolve.

DNS Query Logging¶

To monitor which domains clients are querying in real time:

tcpdump interface eth1 port 53

Useful for auditing access, building a whitelist, and debugging rules that are not behaving as expected.

Limitations¶

Limitation	Detail
DNS over HTTPS (DoH)	Browsers can send DNS queries over HTTPS directly to a cloud DoH provider, bypassing the router's DNS proxy entirely.
DNS over TLS (DoT)	DNS queries over TCP port 853 bypass the DNAT redirect. Block outbound port 853 if needed.
Hardcoded DNS	Applications using a hardcoded DNS server IP bypass the DNAT redirect.
VPN / Proxy	Traffic inside a VPN or proxy tunnel bypasses DNS filtering.

To prevent clients from bypassing DNS controls:

firewall-access 150 deny outbound eth0 udp dport 53
firewall-access 151 deny outbound eth0 tcp dport 53
firewall-access 152 deny outbound eth0 tcp dst 1.1.1.1,1.0.0.1,8.8.8.8,8.8.4.4 dport 443

Rules 150–151 block direct DNS to external resolvers; rule 152 blocks HTTPS to known DoH providers. The DNAT redirect (rule 10) continues to intercept all DNS queries and process them locally.

Method 3: Cloud DNS Category Filtering¶

Cloud DNS Category Filtering routes client DNS queries through a managed cloud DNS resolver that enforces category-based policies. Instead of maintaining manual domain lists, the cloud service categorises millions of domains into content groups — administrators simply select which categories to block. The cloud service also logs all DNS queries and generates usage reports, providing visibility into browsing activity across the network.

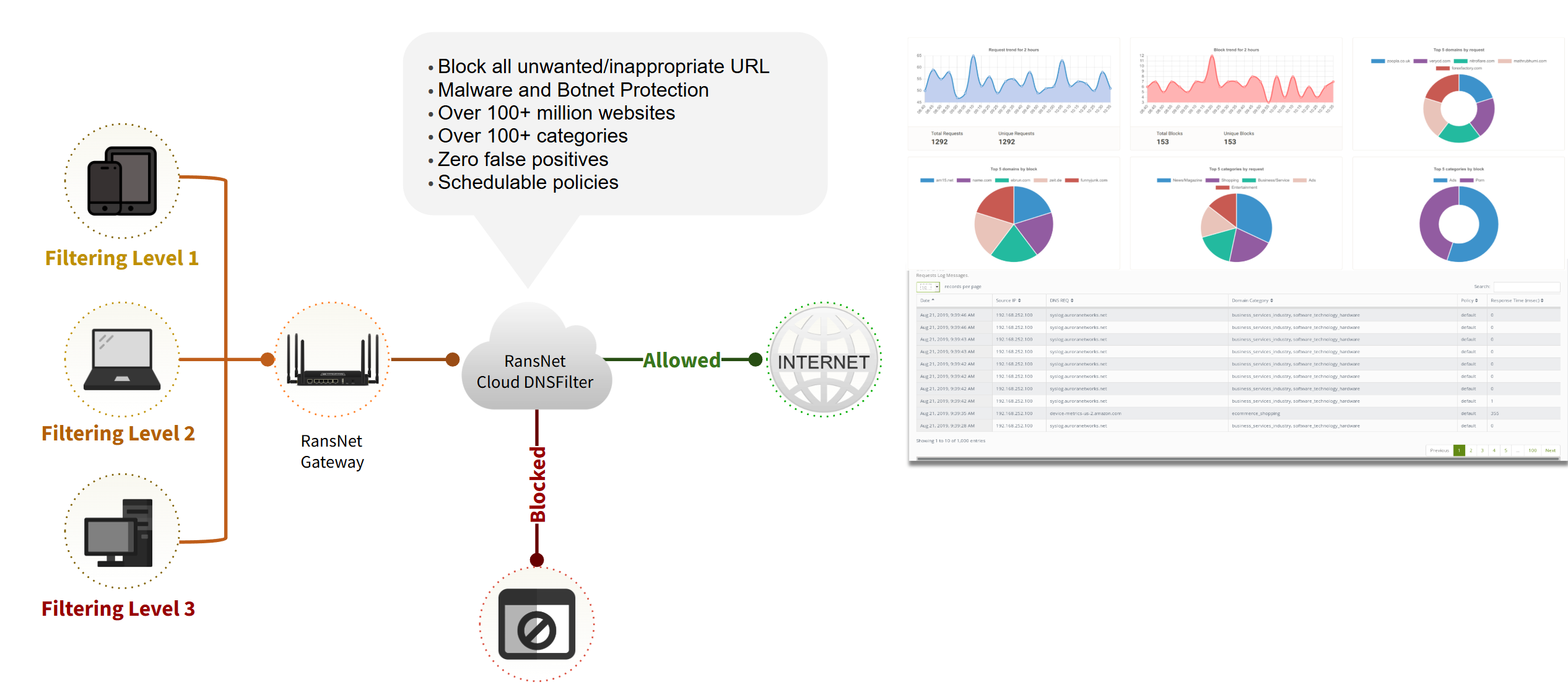

How It Works¶

Client DNS is pointed to the router's LAN IP (via DHCP or static configuration).
When a client queries a domain, the router forwards the request to the RansNet cloud DNS server as its upstream resolver.
The cloud DNS server authenticates the request source, checks whether the queried domain falls within a permitted category, and either returns the resolved IP or blocks the query.
Every DNS request is logged in the cloud dashboard, categorised and attributed for reporting.

Note

The cloud DNS server authenticates requests by source IP — the router's public WAN IP address. Each subscription is tied to one WAN IP per location. Provide your WAN IP to the RansNet provisioning team at the time of subscription.

Requirements¶

A static public WAN IP address on the router. The cloud resolver authenticates by source IP; a dynamic IP will cause the subscription to fail on IP changes.
The router must intercept client DNS queries so they are forwarded through the router to the cloud resolver. See DNS & DNS Rewrite for setup details, including the DNAT rule that transparently redirects port 53 traffic from clients regardless of what DNS server they have configured.

Tip

If your router's WAN connection does not have a static public IP, you can route DNS queries through the RansNet SD-WAN to break out from a RansNet cloud gateway that has a static IP. See the Cloud SD-WAN section for details.

Subscription and Activation¶

Cloud DNS Category Filtering is a subscription service licensed per router (per network location). To subscribe, contact RansNet sales at ransnet.com/home/contact and provide the public WAN IP of each router location to be covered.

Once provisioned, the RansNet team will:

Configure the cloud DNS resolver for your WAN IP
Provide the cloud DNS server IP to set as your upstream resolver
Grant admin access to the management portal at webfilter.ransnet.com/admin

Router Configuration¶

Point the router's upstream DNS to the cloud DNS server IP provided by RansNet at provisioning:

ip name-server <cloud-dns-ip>

Ensure clients are using the router as their DNS server (set via DHCP). No additional router configuration is required — the cloud resolver handles all category enforcement.

Managing Filtering Policies¶

Log in to the admin portal at webfilter.ransnet.com/admin.

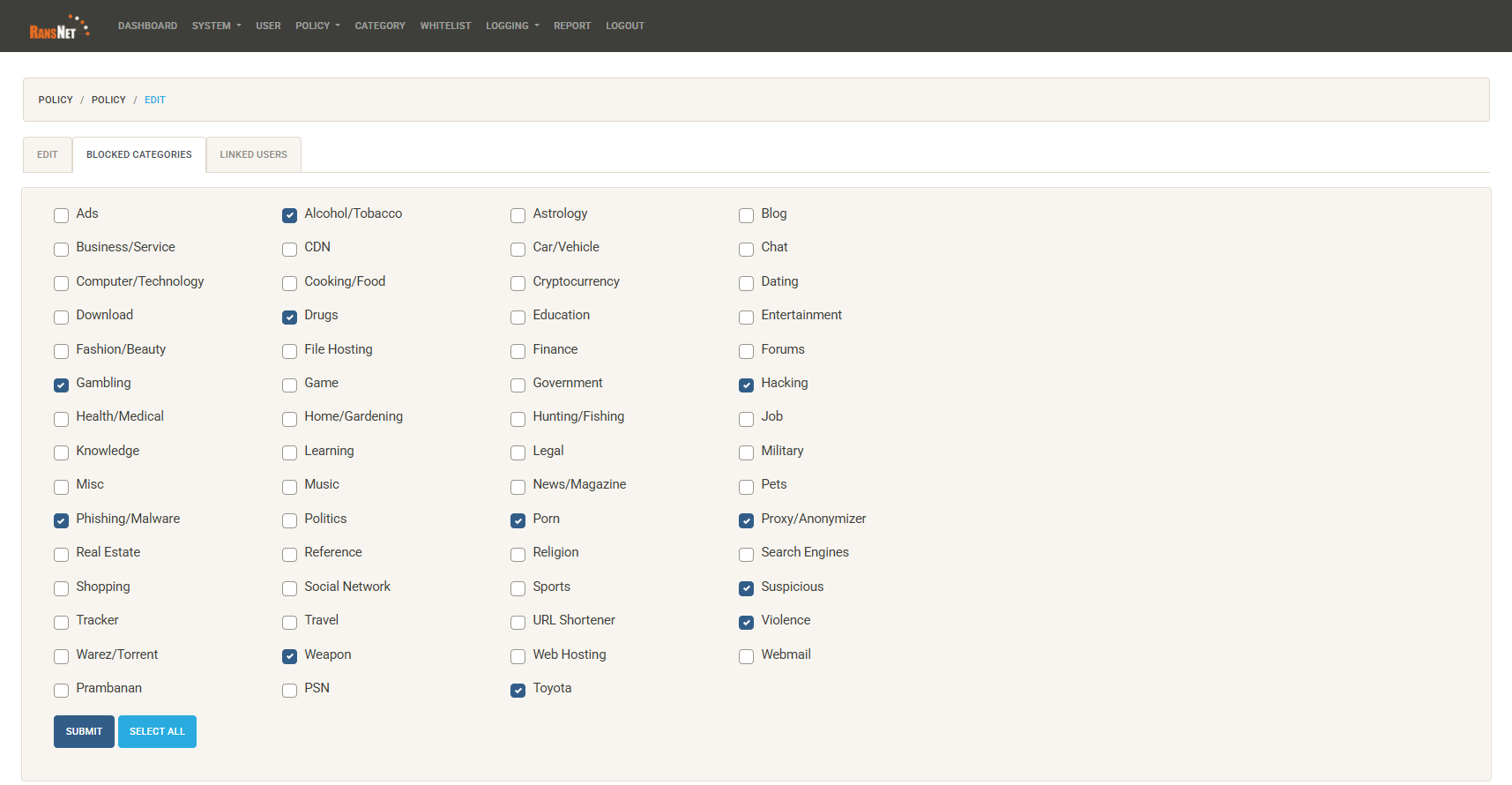

Navigate to POLICY → LIST/CREATE to edit or create filtering policies. Each policy defines which content categories are blocked or permitted — by default all categories are permitted.

Tick the categories you want to block. Common categories include:

Category group	Examples
Security threats	Malware, Phishing, Spyware, Botnets, Command & Control
Adult content	Pornography, Adult themes, Nudity
Social media	Facebook, Instagram, TikTok, Twitter/X, Snapchat
Video streaming	YouTube, Netflix, TikTok video, Twitch
Gaming	Online games, Game downloads
Gambling	Online casinos, Sports betting, Lottery
Proxy & anonymisers	VPN services, Tor, Web proxies
File sharing	Torrents, P2P, Cyberlockers
Productivity	Ads & tracking, Instant messaging, Shopping

Changes to the policy take effect within a few minutes and apply to all clients at locations linked to that policy.

Viewing Logs and Reports¶

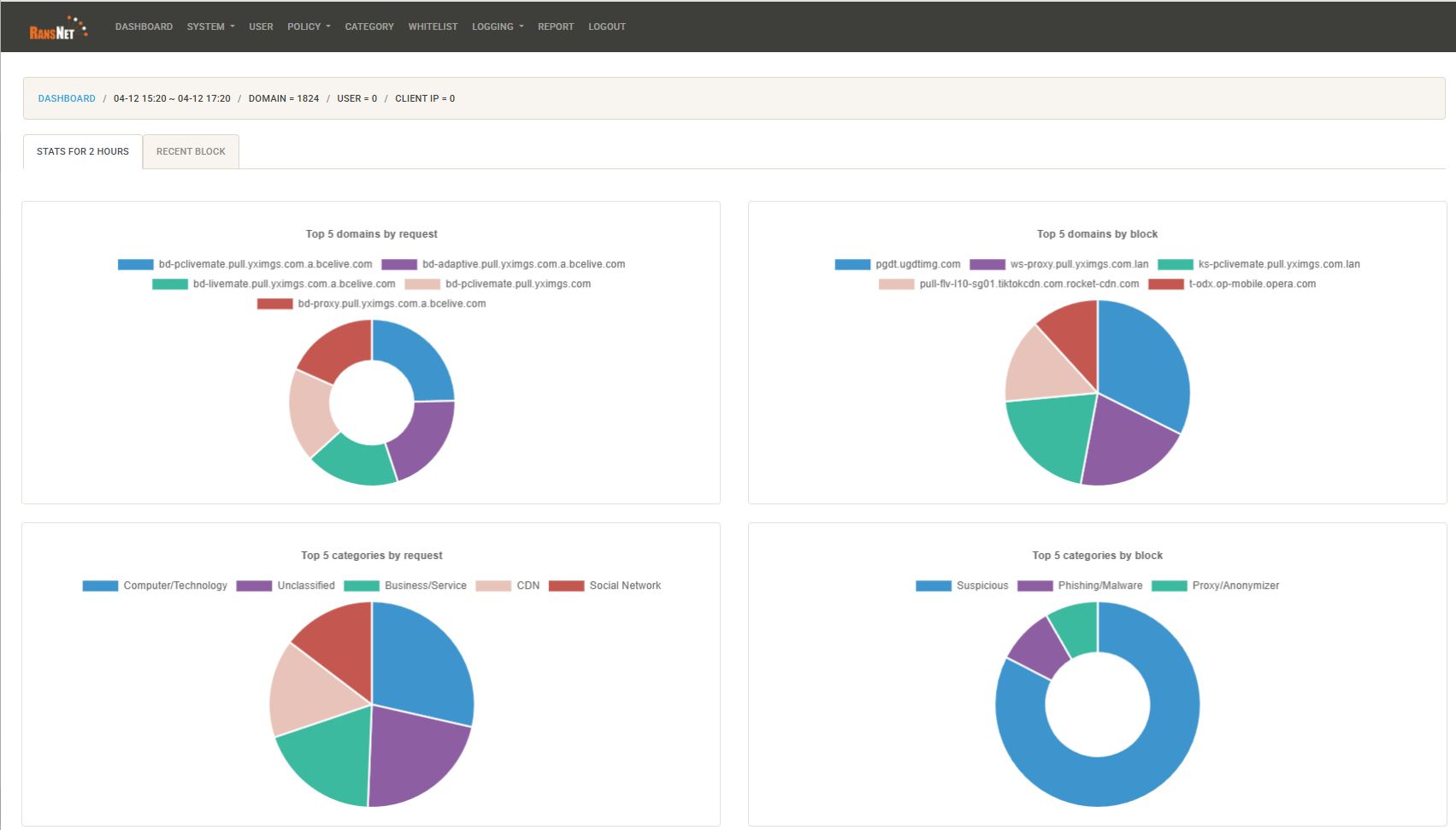

The admin portal provides a dashboard showing DNS query activity across all linked locations:

Per-domain logs — every queried domain, its category, and whether it was permitted or blocked
Category breakdown — traffic volume by content category over a selected time period
Top domains — most frequently queried domains across the network
Blocked query history — a list of blocked requests for audit and policy review

Use the logs to identify which domains are being blocked unexpectedly and add custom whitelist exceptions where needed.

Custom Whitelist and Blacklist¶

Within the portal you can override the category policy for specific domains:

Custom whitelist — always permit a domain regardless of its category (e.g. a legitimate business site miscategorised as social media)
Custom blacklist — always block a specific domain regardless of category settings (e.g. block a specific competitor site outside any standard category)

This allows fine-grained exceptions on top of the broad category policy without modifying the policy itself.
