Traffic Shaping (QoS)¶

Traffic shaping (Quality of Service, QoS) controls how bandwidth is allocated across different types of traffic, ensuring critical applications receive the throughput they need while preventing any single flow or user from monopolising the link.

RansNet appliances support three complementary approaches:

Method	What it controls	Applies to
Class-Based Shaping	Bandwidth per traffic category	Shared pool — all matching flows share the class limit
Connection-Based Limiting	Bandwidth per individual IP address	Per-device ceiling, applied independently to each IP
User-Based Control	Bandwidth per authenticated user	Covered separately in Hotspot

Both class-based shaping and connection-based limiting use firewall marks for traffic classification. This gives the same matching flexibility as firewall rules — any combination of IP address, subnet, protocol, port, FQDN, or named application object group.

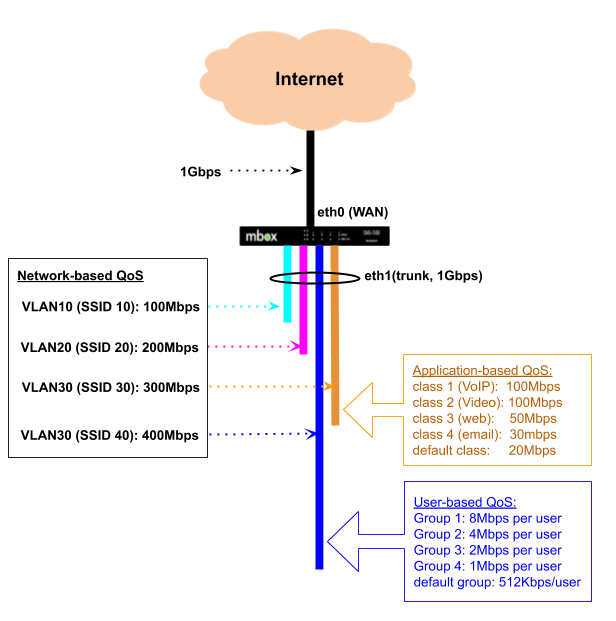

In the diagram above, a 1 Gbps backhaul is shared across multiple VLANs — each typically mapped to a separate wireless SSID or LAN segment. Each VLAN is allocated a minimum guaranteed bandwidth and a burst ceiling. When one VLAN is not using its allocation, others may borrow the unused capacity up to their ceiling.

Within a VLAN, traffic can be further subdivided by application type (VLAN 30) or by individual user (VLAN 40 via Hotspot).

Class-Based Shaping¶

Class-based shaping uses HTB (Hierarchical Token Bucket) queuing to allocate bandwidth across defined traffic classes. Each class has a guaranteed minimum rate and a maximum ceiling. Under congestion, higher-priority classes are served first before lower-priority ones receive any remaining bandwidth.

Typical use cases:

Guarantee bandwidth for business-critical applications (video conferencing, VoIP, ERP/CRM)
Cap bandwidth for non-business traffic (social media, streaming) without blocking it entirely
Prioritise real-time traffic over bulk transfers during peak hours
Differentiate service levels between VLANs or departments sharing the same uplink

How Traffic is Classified¶

Classification is a two-step process:

A firewall-set rule inspects traffic and stamps matching packets with a numeric fwmark.
A QoS class references the same mark number — the scheduler places marked packets into the corresponding class queue.

Because firewall rules handle all the matching, QoS classes inherit the full firewall matching vocabulary, including named application object groups and FQDN.

Note

When configuring via the GUI or orchestrator, firewall-set rules and fwmark assignments are created automatically — no manual mark management is required. The orchestrator derives the fwmark from the class number (e.g. class 200 → upload mark 2001, download mark 2002). The CLI reflects these auto-generated values in show running-config.

Upload and Download¶

QoS acts on egress (outgoing) traffic only. To shape both directions, configure traffic-shape on both the WAN and LAN interfaces:

Upload (client → internet): configure on the WAN interface (eth0, wwan0, etc.)
Download (internet → client): configure on the LAN interface (vlan 1, vlan 2, etc.)

Separate fwmarks are used for each direction — the upload mark matches on destination port or object (traffic going to the internet), and the download mark matches on source port or object (traffic returning from the internet). The orchestrator assigns these marks automatically following the class number convention.

Class Priority¶

The class number (flowno) controls priority in two complementary ways:

Filter evaluation order — lower class numbers are matched first. If traffic could satisfy multiple class filters, it is placed into the lowest-numbered matching class.
HTB scheduling priority — the HTB scheduler maps the class number to one of 8 priority tiers (0–7) using the formula (flowno − 200) × 8 ÷ 200. Class 200 maps to tier 0 (highest); class 399 maps to tier 7 (lowest). Each tier spans 25 class numbers. When the shared bandwidth pool has excess capacity, lower-tier classes are served before higher-tier classes, allowing them to burst toward their ceil sooner.

Class range	HTB prio tier	Priority
200–224	0	Highest
225–249	1
250–274	2
275–299	3
300–324	4
325–349	5
350–374	6
375–399	7	Lowest

Under congestion (link fully saturated), every class is guaranteed its configured rate regardless of priority tier. Use rate to reserve bandwidth that must be protected for latency-sensitive traffic such as VoIP or video conferencing. The priority tier controls which classes benefit first when spare capacity is available.

GUI Configuration¶

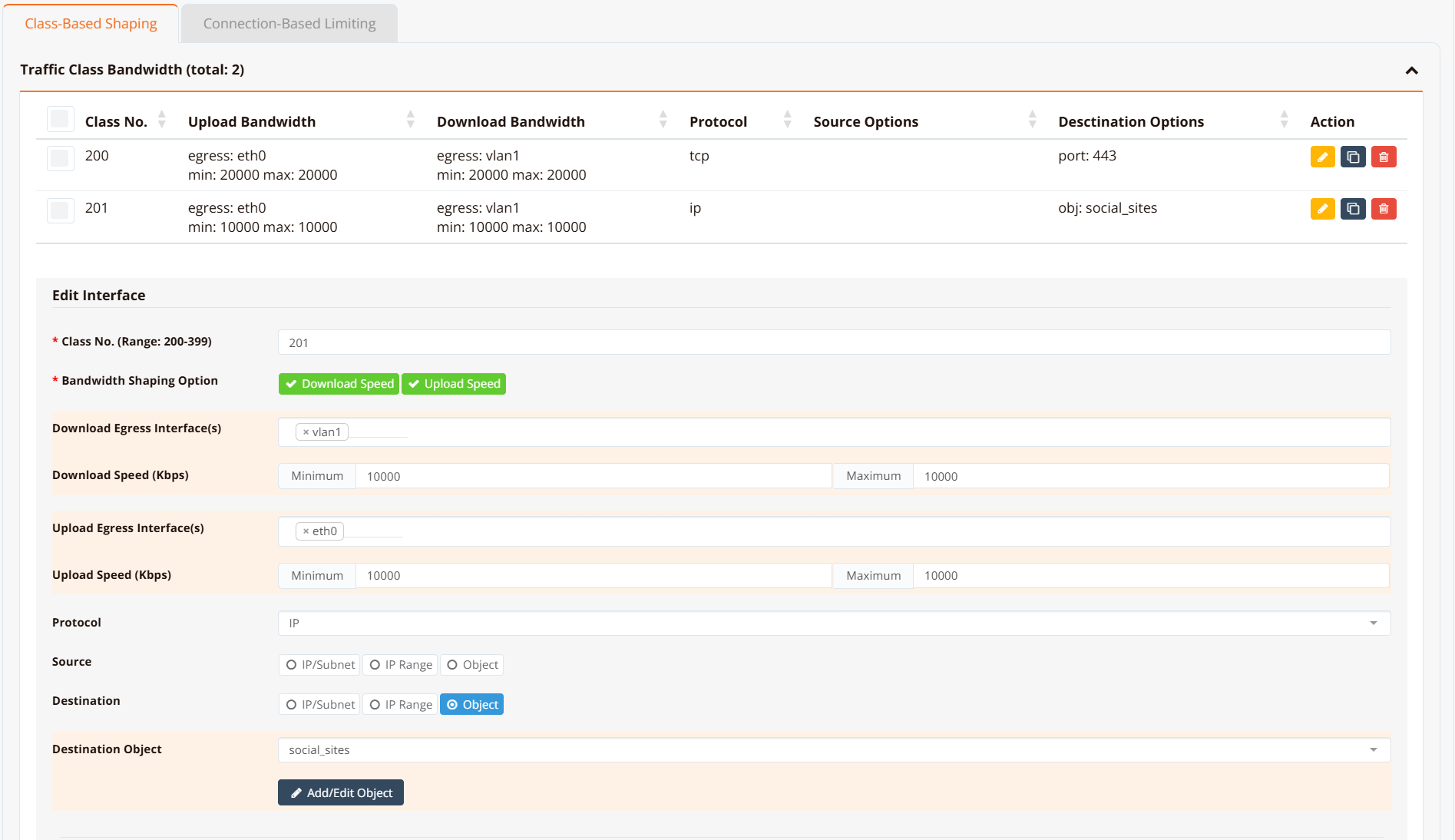

Navigate to Device Settings → SD-WAN → Traffic Shaping and click the Class-Based Shaping tab.

CLI Configuration¶

interface eth0
 traffic-shape 10000000 10000000
  class 200 20000 20000 fwmark 2001 remark https-upload
  class 201 10000 10000 fwmark 2011 remark social-upload
!
interface vlan 1 1
 traffic-shape 10000000 10000000
  class 200 20000 20000 fwmark 2002 remark https-download
  class 201 10000 10000 fwmark 2012 remark social-download
  default bandwidth 1000 1000
!
object-group social_sites
 app Facebook
 app Tiktok
 app YouTube
!
firewall-set 2001 mark 2001 access tcp dport 443 remark https-upload
firewall-set 2002 mark 2002 access tcp sport 443 remark https-download
firewall-set 2011 mark 2011 access ip dst_object social_sites remark social-upload
firewall-set 2012 mark 2012 access ip src_object social_sites remark social-download

Key points:

traffic-shape <rate> <ceil> sets the HTB root class bandwidth in Kbps. Use 10000000 (10 Gbps) when there is no overall interface cap — individual class limits do the actual shaping.
class <flowno> <rate> <ceil> fwmark <mark> defines a class. flowno determines priority — lower is higher priority. rate is the guaranteed minimum; ceil is the maximum burst ceiling.
fwmark <mark> links the class to a firewall-set rule carrying the same mark number. When using the orchestrator or GUI, this value is assigned automatically — no manual configuration needed.
default bandwidth <rate> <ceil> creates a catch-all class for traffic that does not match any fwmark. Omitting it allows unmatched traffic to pass at wire speed, which is acceptable when only per-class ceilings are needed.
remark is a free-text label stored in the running config for identification only — it has no effect on shaping behaviour.

Tip

Assign lower class numbers to higher-priority traffic. Class 200 (prio tier 0) is always scheduled before class 350 (prio tier 6) when excess capacity is available. For traffic that must be protected under congestion (VoIP, real-time video), set a meaningful rate so the class retains its guaranteed allocation even when the link is saturated.

Note

firewall-set rules are evaluated for all traffic passing through the device. Only packets that match a rule receive a mark; all other traffic is unclassified. If a default bandwidth class is not configured, unclassified traffic exits at wire speed outside of HTB's control.

Verification¶

Example output:

HSA-520# show interface traffic-shape

Interface: eth0
  Class    Rate        Ceil        Prio    FW Mark           Sent              Dropped
  -------  ----------  ----------  ------  ----------------  ----------------  -------
  200      20Mbit      20Mbit      0       2001/0x7d1        244247B/2141p     0
  201      10Mbit      10Mbit      0       2011/0x7db        0B/0p             0
  [i] No default class — unclassified traffic passes at wire speed (uncapped)

Interface: vlan1
  Class    Rate        Ceil        Prio    FW Mark           Sent              Dropped
  -------  ----------  ----------  ------  ----------------  ----------------  -------
  200      20Mbit      20Mbit      0       2002/0x7d2        0B/0p             0
  201      10Mbit      10Mbit      0       2012/0x7dc        0B/0p             0
  default  1Mbit       1Mbit       -       (catch-all)       868B/8p           0

FW Mark shows the decimal value (matching the firewall-set rule number) alongside the kernel's internal hex representation. Prio is the HTB scheduling priority (0–7) derived from the class number using (flowno − 200) × 8 ÷ 200 — class 200 → prio 0 (highest), class 399 → prio 7 (lowest). Classes with a lower prio value are served first when excess bandwidth is available.

For low-level inspection of the underlying qos state:

HSA-520# show interface traffic-class eth0     (HTB class details and statistics)
HSA-520# show interface traffic-filter eth0    (tc filter entries and fwmark handles)
HSA-520# show interface traffic-control        (qdisc state for all interfaces)

Connection-Based Limiting (rate-limit)¶

Connection-based limiting enforces a per-IP bandwidth cap. Unlike class-based shaping — which is a shared pool across all matching flows — rate-limit applies independently to each source and destination IP address.

Typical use cases:

Prevent any single device from saturating the internet link
Enforce per-user fair-use policies on guest or hotspot networks
Rate-limit access to a specific application or destination on a per-client basis

GUI Configuration¶

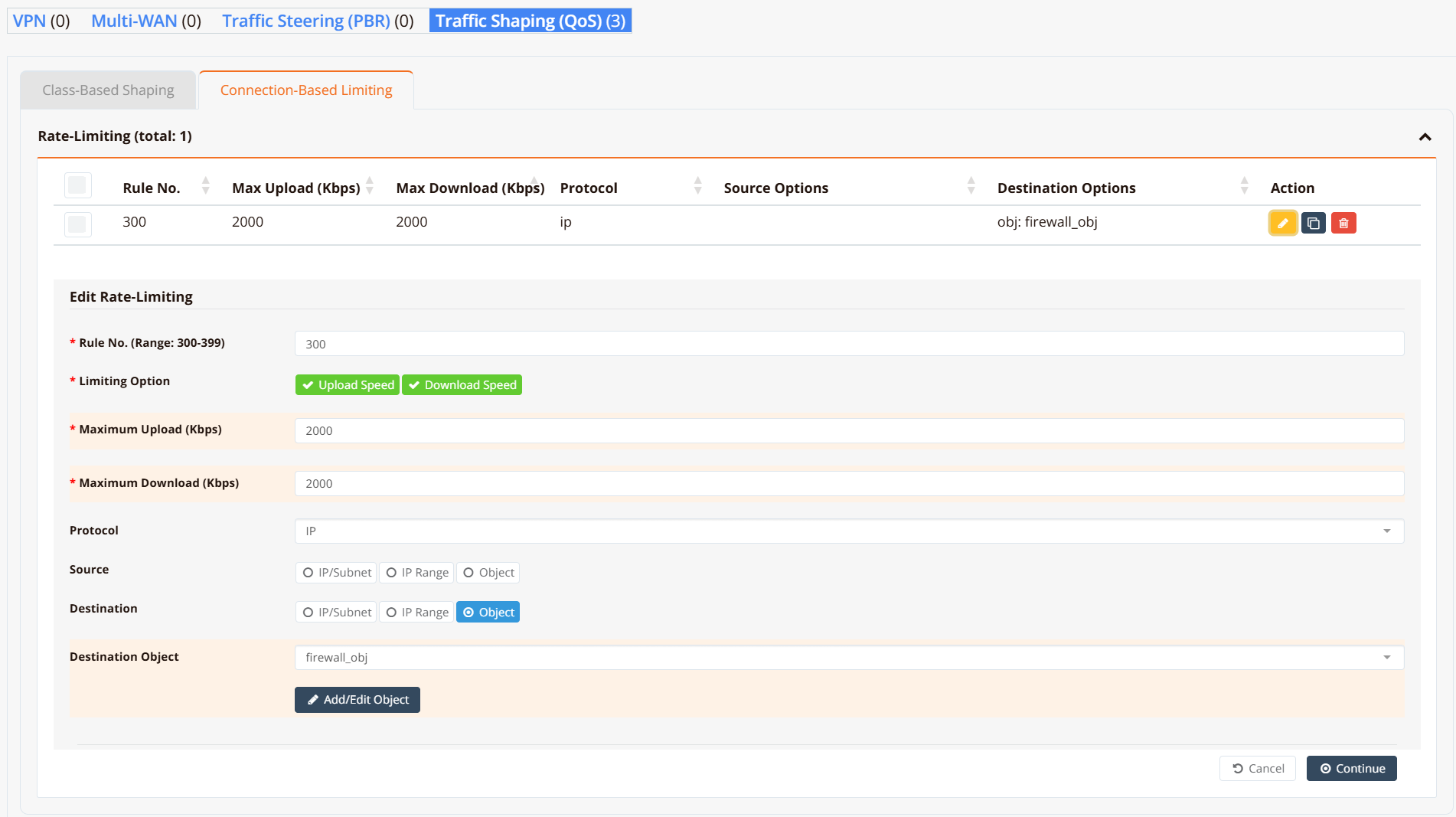

Navigate to Device Settings → SD-WAN → Traffic Shaping and click the Connection-Based Limiting tab.

CLI Configuration¶

object-group firewall_obj
 app WhatsApp
 fqdn docs.ransnet.com
 net 2.2.2.2
!
firewall-limit 3001 2000 all ip dst_object firewall_obj remark limit-upload
firewall-limit 3002 2000 all ip src_object firewall_obj remark limit-download

Key points:

firewall-limit <id> <rate_kbps> creates a rate-limiting rule. id sets evaluation order — lower ID is evaluated first. rate_kbps is the per-IP ceiling in Kbps.
Configure both an upload rule (dst_object) and a download rule (src_object) to limit traffic in both directions.
The same object-group vocabulary applies: match by IP, subnet, FQDN, protocol, port, or application.

Verification¶

Example output:

HSA-520# show firewall limit-list

###### Summary of Rate limit chain ########
 pkts bytes target         prot opt in   out   source     destination
    0     0 LIMITBPS-3001  all  --  *    *     0.0.0.0/0  0.0.0.0/0  match-set firewall_obj dst
    0     0 LIMITBPS-3002  all  --  *    *     0.0.0.0/0  0.0.0.0/0  match-set firewall_obj src

###### Chain-LIMITBPS-3001 details ###########
Chain LIMITBPS-3001 (1 references)
 pkts bytes target  prot opt in   out   source     destination
    0     0 DROP    all  --  *    *     0.0.0.0/0  0.0.0.0/0  limit: above 500000b/s mode dstip
    0     0 DROP    all  --  *    *     0.0.0.0/0  0.0.0.0/0  limit: above 500000b/s mode srcip
    0     0 ACCEPT  all  --  *    *     0.0.0.0/0  0.0.0.0/0

###### Chain-LIMITBPS-3002 details ###########
Chain LIMITBPS-3002 (1 references)
 pkts bytes target  prot opt in   out   source     destination
    0     0 DROP    all  --  *    *     0.0.0.0/0  0.0.0.0/0  limit: above 500000b/s mode dstip
    0     0 DROP    all  --  *    *     0.0.0.0/0  0.0.0.0/0  limit: above 500000b/s mode srcip
    0     0 ACCEPT  all  --  *    *     0.0.0.0/0  0.0.0.0/0

Each chain contains two DROP rules — one keyed on source IP (srcip) and one on destination IP (dstip) — so the per-IP cap is enforced for each endpoint independently. Packets exceeding the rate are dropped before forwarding; conforming traffic reaches the ACCEPT rule and is forwarded normally.

Design Notes¶

Class Numbering Convention¶

Valid class numbers are in the range 200–399. The class number determines both the scheduling priority tier and the auto-assigned fwmark values. Use the table below to select the right class range for the desired priority:

Class range	HTB prio	Priority level	Typical use
200–224	0	Highest	VoIP, real-time video
225–249	1		Video conferencing
250–274	2		Business-critical (SaaS, ERP)
275–299	3		Interactive web (HTTPS)
300–324	4		General web browsing
325–349	5		File downloads
350–374	6		Social media, streaming
375–399	7	Lowest	Background / bulk transfers

The orchestrator automatically derives fwmark values from the class number — class N gets upload mark N×10+1 and download mark N×10+2:

HTB prio	Example class	Auto upload mark	Auto download mark
0 (highest)	200	2001	2002
1	225	2251	2252
2	250	2501	2502
3	275	2751	2752
4	300	3001	3002
5	325	3251	3252
6	350	3501	3502
7 (lowest)	375	3751	3752

Combining Methods¶

Class-based shaping and connection-based limiting work simultaneously and complement each other:

Class-based shaping caps the total bandwidth for a traffic category — e.g. all social media traffic across all users combined ≤ 10 Mbps.
Connection-based limiting caps each individual device within that category — e.g. each device ≤ 2 Mbps of social media, regardless of what others are doing.

Applying both gives aggregate control plus per-user fairness with a single configuration.

Note

Per-connection means a specific 5-tuple (source IP, destination IP, protocol, source port, destination port). One device typically opens many connections simultaneously. Class-based shaping controls the aggregate of all those connections; connection-based limiting controls the total for each device IP.
