Firewall Policies¶

Firewall policies are the rules that control which traffic is permitted, denied, or translated as it passes through or terminates on the router. Each rule chain has a dedicated section — Access, DNAT, SNAT, and Input — and all rules within a chain are evaluated top-to-bottom by rule number.

For an explanation of how these chains relate to the packet flow, see Firewall Overview.

Rule Evaluation Conventions¶

Rules are processed in ascending rule number order — lower numbers are evaluated first. A packet that matches a rule is acted on immediately and not evaluated by any subsequent rules.
Device-local rules are numbered in the range 100–499. These are configured directly on the device.
Template rules are numbered in the range 500–999. These are inherited from a device template in mfusion and apply in addition to local rules.
Within a single rule, you may specify multiple source or destination entries of the same type (e.g. multiple source subnets). All entries are evaluated as OR — the rule matches if any one of them matches the packet.
An Object can be used in place of individual IP/subnet entries to reference a named group of IPs, networks, applications, or FQDNs. See Firewall Objects.

Implicit Deny

All rule chains end with an implicit deny. Any traffic that does not match an explicit permit rule is dropped silently. No explicit deny-all rule is needed.

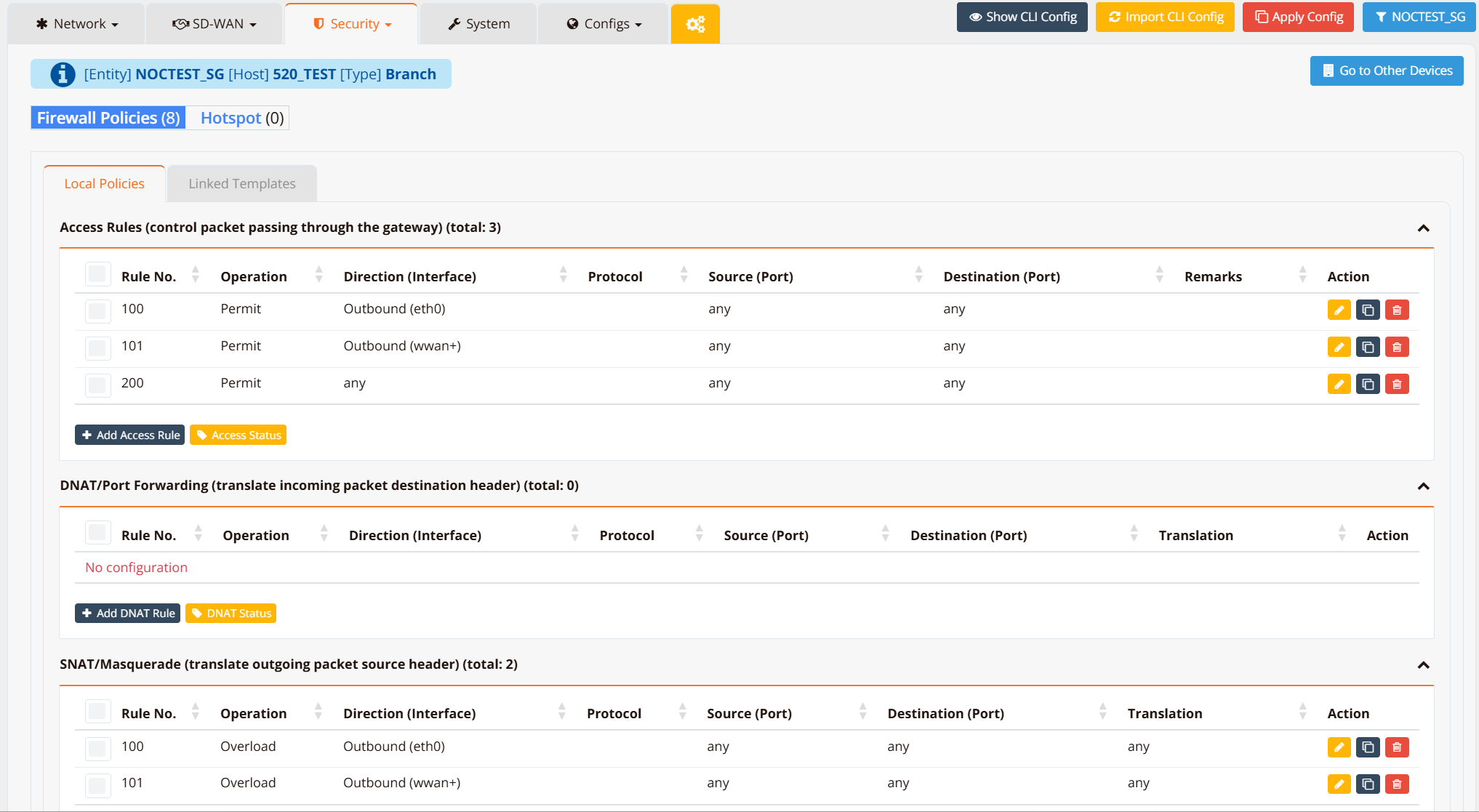

Firewall Policies Page¶

Navigate to Device Settings → Security → Firewall Policies.

The page displays three collapsible sections — Access Rules, DNAT/Port Forwarding, and SNAT/Masquerade — each showing the currently configured rules for that chain. An Input Rules section is also available by scrolling down.

Each rule table shows the following columns:

Column	Description
Rule No.	The rule's position in the chain. Rules are evaluated lowest-first.
Operation	The action applied — `Permit`, `Deny`, `Overload`, `Translate`, or `Exempt`
Direction (Interface)	The traffic direction and the interface it applies to (e.g. `Outbound (eth0)`, `Inbound (tap+)`)
Protocol	The IP protocol matched — `TCP`, `UDP`, `ICMP`, or `any`
Source (Port)	Matched source IP/network and optional source port
Destination (Port)	Matched destination IP/network and optional destination port
Remarks	Optional free-text label describing the rule's purpose
Action	Edit, clone, or delete the rule

firewall-access¶

The firewall-access chain controls traffic passing through the router between interfaces — for example, from LAN to WAN, between VLANs, or from a VPN tunnel to a local subnet. It is equivalent to a FORWARD policy.

Key behaviours:

Packets belonging to an established or related session are automatically permitted — no rule is needed for return traffic.
All other traffic is evaluated top-to-bottom against the access rules.
Unmatched traffic is implicitly denied.

GUI Configuration

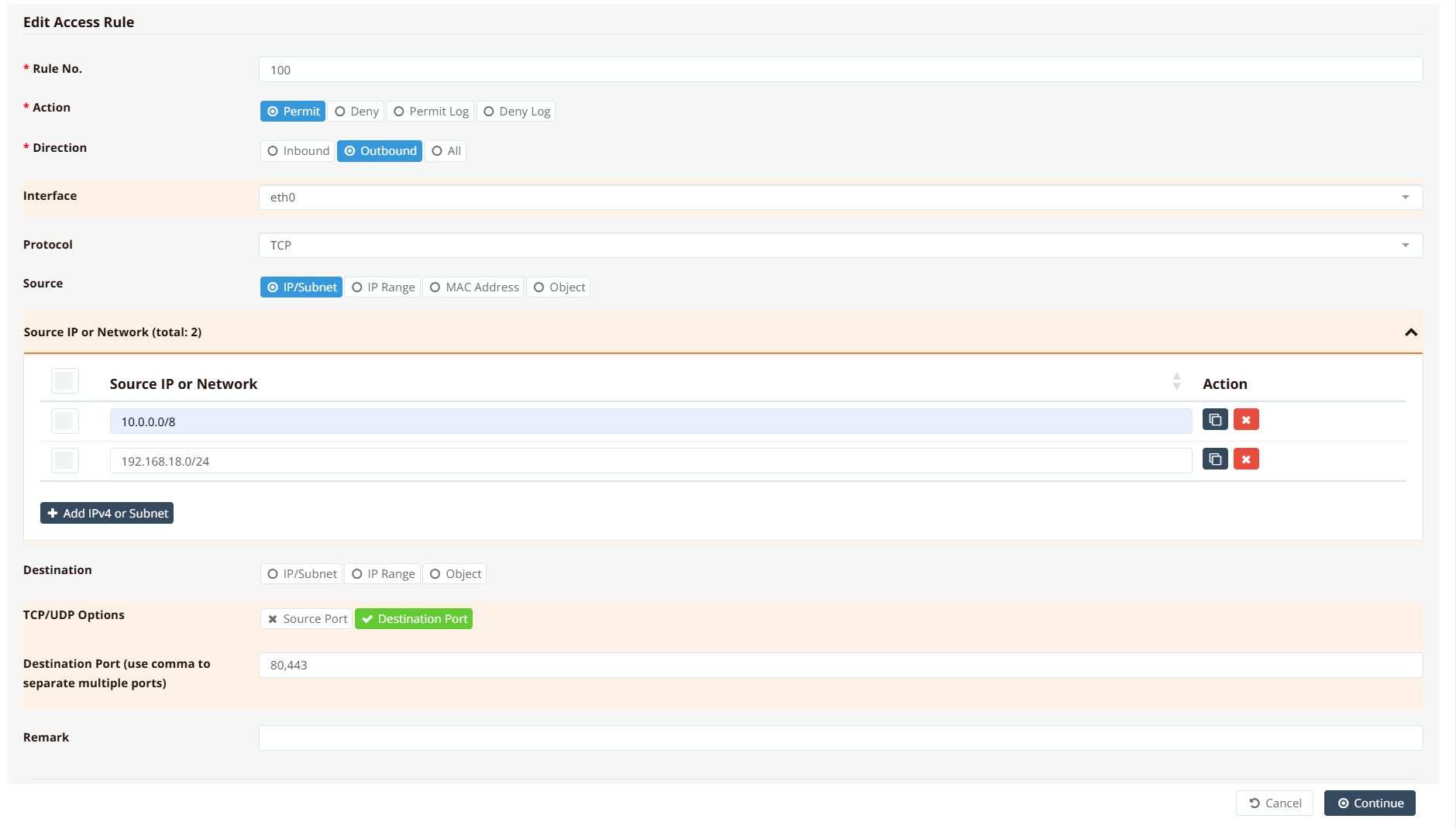

Click + Add Access Rule to open the rule form.

Field	Description
Rule No.	Position in the rule chain. Lower numbers are evaluated first.
Action	`Permit` — allow matching traffic. `Deny` — drop matching traffic silently. `Permit Log` / `Deny Log` — same as above, but also log each matched packet to syslog.
Direction	`Inbound` — traffic arriving on the specified interface. `Outbound` — traffic leaving via the specified interface. `All` — both directions.
Interface	The interface this rule applies to. Leave blank to match all interfaces.
Protocol	`TCP`, `UDP`, `ICMP`, or leave blank for any protocol.
Source	Match by `IP/Subnet`, `IP Range`, `MAC Address`, or `Object`. Multiple entries can be added — the rule matches if any entry matches the packet's source.
Destination	Match by `IP/Subnet`, `IP Range`, or `Object`. Multiple entries supported. See Firewall Objects for how to define named groups.
TCP/UDP Options	Enable `Source Port` and/or `Destination Port` matching. Enter multiple port numbers or ranges separated by commas (e.g. `80,443` or `8000-8080`).
Remark	Optional free-text description for the rule

Tip

Use the Object source/destination type to group multiple IPs, subnets, FQDNs, or application signatures under a single named reference. This keeps rules concise and makes policy changes easier to manage — update the Object once and all rules using it are updated automatically. See Firewall Objects.

CLI Configuration

firewall-access 100 permit outbound eth0 tcp src 10.0.0.0/8,192.168.18.0/24 dport 80,443

Key points:

100 — rule number; evaluated before any rule numbered 101 or higher
permit outbound eth0 — permit traffic leaving via eth0
tcp — match TCP protocol only
src 10.0.0.0/8,192.168.18.0/24 — match packets from either source subnet (comma-separated, no spaces)
dport 80,443 — match destination port 80 or 443

firewall-dnat¶

The firewall-dnat chain rewrites the destination IP address and/or port of inbound packets before the routing decision is made. This is the mechanism for port forwarding and inbound access to internal servers — a packet arriving on the WAN interface addressed to the public IP is redirected to an internal host.

GUI Configuration

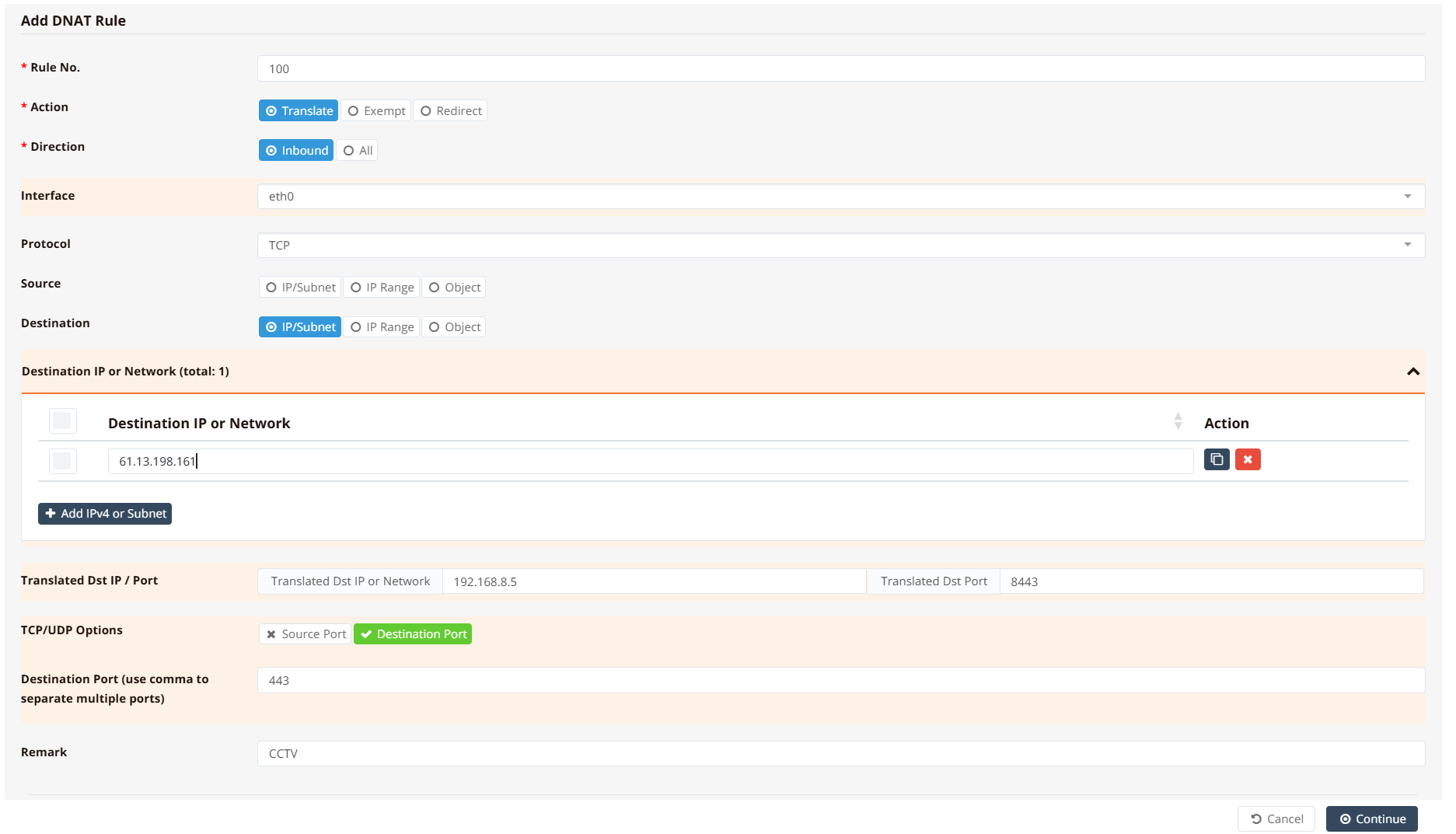

Click + Add DNAT Rule to open the rule form.

Field	Description
Rule No.	Position in the DNAT chain. Lower numbers are evaluated first.
Action	`Translate` — rewrite the destination IP/port as configured. `Exempt` — bypass address translation for matching traffic; place exempt rules above translate rules when specific sources must not be NATed. `Redirect` — redirect traffic to a local service on the router itself (e.g. transparent proxy).
Direction	`Inbound` — apply to traffic arriving on the interface. `All` — apply in both directions.
Interface	The WAN interface on which inbound traffic arrives (e.g. `eth0`).
Protocol	`TCP`, `UDP`, or leave blank for any.
Source	Optional — restrict the rule to packets from specific source IPs or networks. Leave blank to match all sources.
Destination	The public IP address (or range) that incoming packets are addressed to — typically the router's WAN IP.
Translated Dst IP / Port	The internal host IP and port to forward the traffic to.
TCP/UDP Options	Enable `Source Port` and/or `Destination Port` to match specific ports. Multiple ports can be entered comma-separated.
Remark	Optional free-text label

Note

A DNAT rule alone does not permit the forwarded traffic. A corresponding firewall-access rule must also exist to allow the translated packet to reach the internal host. DNAT rewrites the address; firewall-access controls whether the packet is forwarded.

CLI Configuration

firewall-dnat 100 translate inbound eth0 tcp dst 61.13.198.161 dport 443 xdst 192.168.8.5 xdport 8443 remark CCTV

Key points:

translate inbound eth0 — rewrite destination on packets arriving on eth0
tcp dst 61.13.198.161 dport 443 — match TCP packets addressed to the WAN IP on port 443
xdst 192.168.8.5 xdport 8443 — translate destination to internal host 192.168.8.5 port 8443
remark CCTV — optional label identifying this rule

firewall-snat¶

The firewall-snat chain rewrites the source IP address of outbound packets after the routing decision. The most common use is PAT/masquerading — all internal hosts sharing a single public WAN IP, with each session distinguished by a unique source port assigned by the router.

GUI Configuration

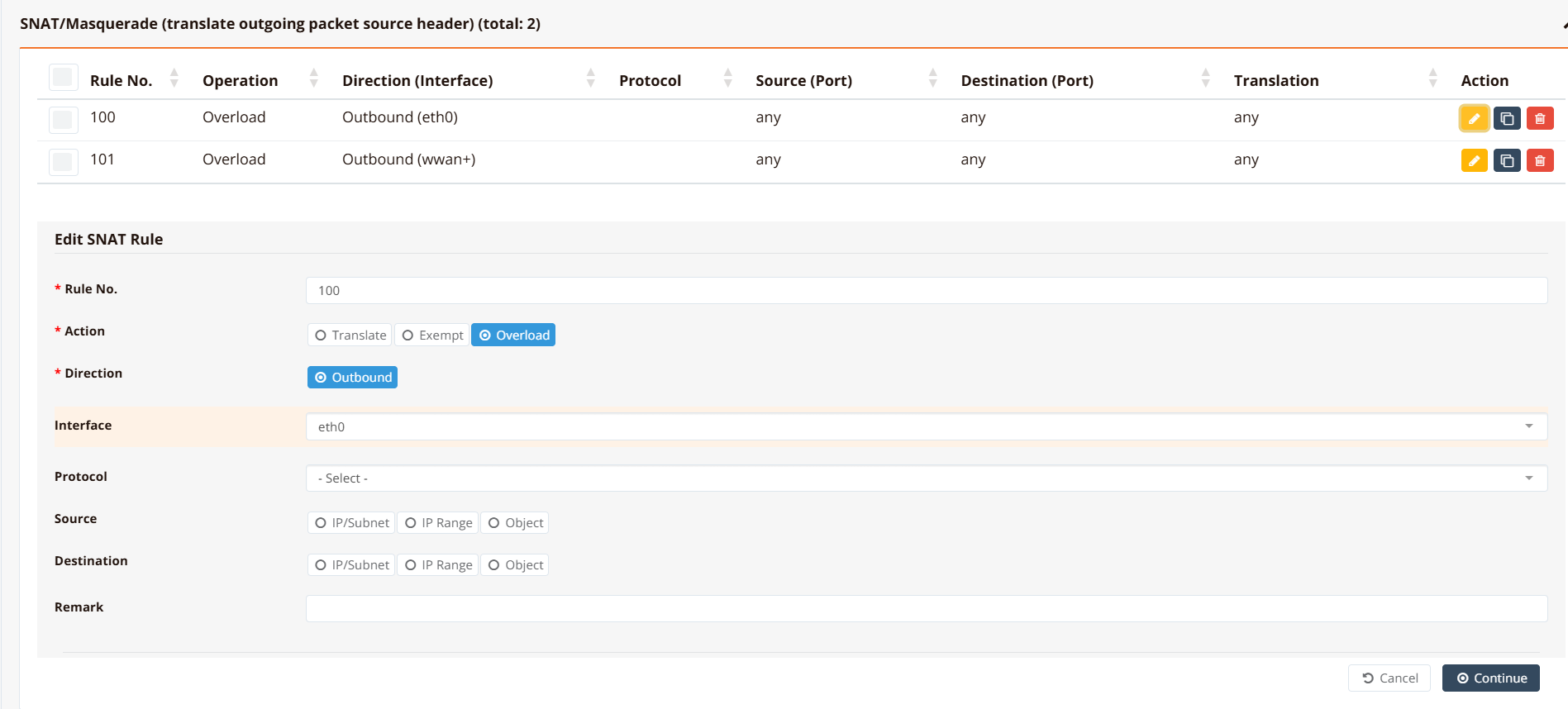

Click + Add SNAT Rule to open the rule form.

Field	Description
Rule No.	Position in the SNAT chain. Lower numbers are evaluated first.
Action	`Overload` — PAT/masquerade; translate all matching source IPs to the outgoing interface's IP, using unique source ports to track sessions. `Translate` — rewrite the source IP to a specific address or pool. `Exempt` — bypass source address translation for matching traffic; place above translate/overload rules for traffic that should not be NATed.
Direction	Typically `Outbound` — apply to traffic leaving via the specified interface.
Interface	The WAN interface on which source translation is applied (e.g. `eth0`, `wwan0`).
Protocol	Optional — restrict to a specific protocol. Leave blank to apply to all traffic.
Source	Optional — restrict to packets from specific internal subnets. Leave blank to apply to all outbound traffic.
Destination	Optional — restrict to packets addressed to specific destinations.
Remark	Optional free-text label

Note

A SNAT rule alone does not permit the forwarded traffic. A corresponding firewall-access rule must also exist to allow the translated packet to reach the internal host. SNAT rewrites the address; firewall-access controls whether the packet is forwarded.

CLI Configuration

firewall-snat 100 overload outbound eth0
firewall-snat 101 overload outbound wwan+

Key points:

overload outbound eth0 — masquerade all outbound traffic on eth0 behind the interface's WAN IP
wwan+ — the + wildcard matches all WWAN interfaces (wwan0, wwan1, etc.); a single rule covers all cellular uplinks regardless of how many modems are present

firewall-input¶

The firewall-input chain controls traffic destined for the router itself — management services such as SSH, HTTPS, BGP, SNMP, and RADIUS. It does not affect transit traffic between interfaces, which is handled by firewall-access.

By default, the system pre-permits a set of commonly required, low-risk services: ICMP, DHCP requests, GRE, IPsec (IKE + ESP), and others. These are listed as DEFAULTHIDE99 entries in the rule list. Use show firewall input-list all in the CLI to view all active default rules.

GUI Configuration

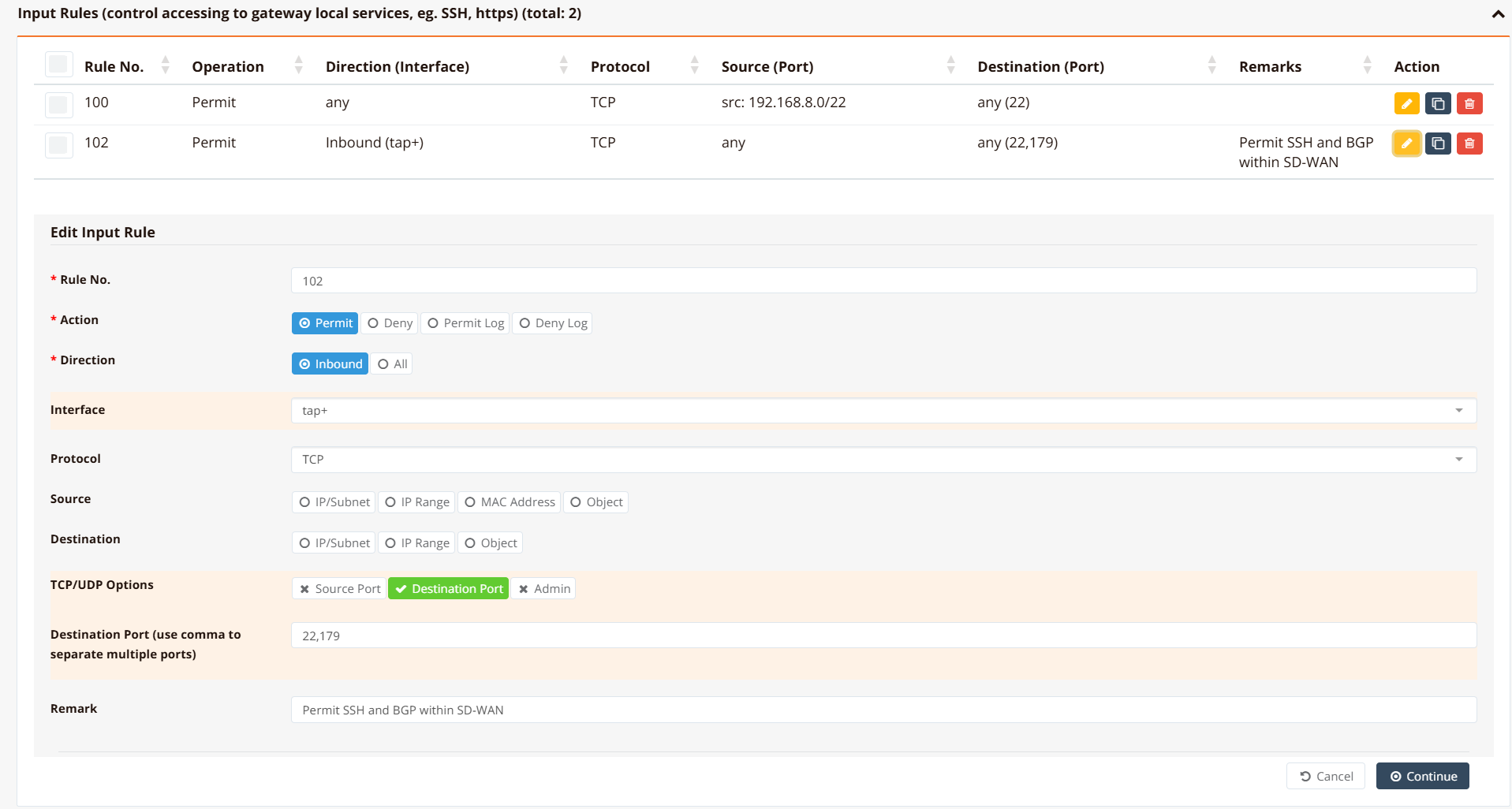

Click + Add Input Rule to open the rule form.

Field	Description
Rule No.	Position in the input chain. Lower numbers are evaluated first.
Action	`Permit`, `Deny`, `Permit Log`, or `Deny Log`
Direction	`Inbound` — restrict to traffic arriving on a specific interface. `All` — apply regardless of which interface the packet arrives on.
Interface	The interface on which the management access is permitted (e.g. `tap+` for SD-WAN tunnel interfaces, `eth1` for a trusted LAN port).
Protocol	`TCP`, `UDP`, `ICMP`, or blank for any.
Source	Optional — restrict access to specific source IPs, ranges, or Objects. Leave blank to allow from any source.
Destination	Optional — restrict to packets addressed to specific destination IPs on the router.
TCP/UDP Options	`Source Port`, `Destination Port`, or `Admin` (matches the router's management port). Multiple ports comma-separated.
Remark	Optional free-text description

Tip

Always restrict management access (SSH, HTTPS) to known trusted source IPs or networks — at minimum, limit to the SD-WAN tunnel interface (tap+) and the LAN management subnet. Avoid permitting management access on WAN interfaces without source IP restrictions.

CLI Configuration

firewall-input 102 permit inbound tap+ tcp dport 22,179 remark "Permit SSH and BGP within SD-WAN"

Key points:

permit inbound tap+ — permit traffic arriving on any SD-WAN tunnel interface (tap0, tap1, etc.)
tcp dport 22,179 — match TCP destination port 22 (SSH) or 179 (BGP)
remark — labels the rule for identification in the policy list

firewall-disable¶

The system's default permit rules cover commonly required traffic (ICMP, IKE, ESP, DHCP, GRE). If a security policy or compliance requirement mandates disabling one of these defaults, use the firewall-disable command rather than attempting to add an explicit deny rule on top.

firewall-disable ?
  access     Disable default access rules
  br-filter  Disable layer-2 firewall
  input      Disable default input rules
  sip-alg    Disable NAT ALG for SIP

To verify which default rules are currently active:

show firewall access-list all
show firewall input-list all

Rules marked DEFAULTHIDE99 are system defaults. Rules without this tag are user-configured.
