Firewall Overview¶

RansNet SD-WAN routers include a built-in stateful firewall that controls all traffic entering, leaving, and passing through the device. Rules are evaluated per packet against configured criteria — source/destination IP, port, protocol, and connection state — and the result is either to permit, deny, or modify the packet.

The firewall is organised into distinct rule chains, each applied at a specific point in the packet processing pipeline. Understanding which chain to use for a given requirement is the starting point for any firewall configuration.

Implicit Deny

All firewall rule chains enforce an implicit deny at the end. Any traffic that does not match an explicit permit rule is dropped automatically — no configuration is needed to block unmatched traffic.

Rule Chains¶

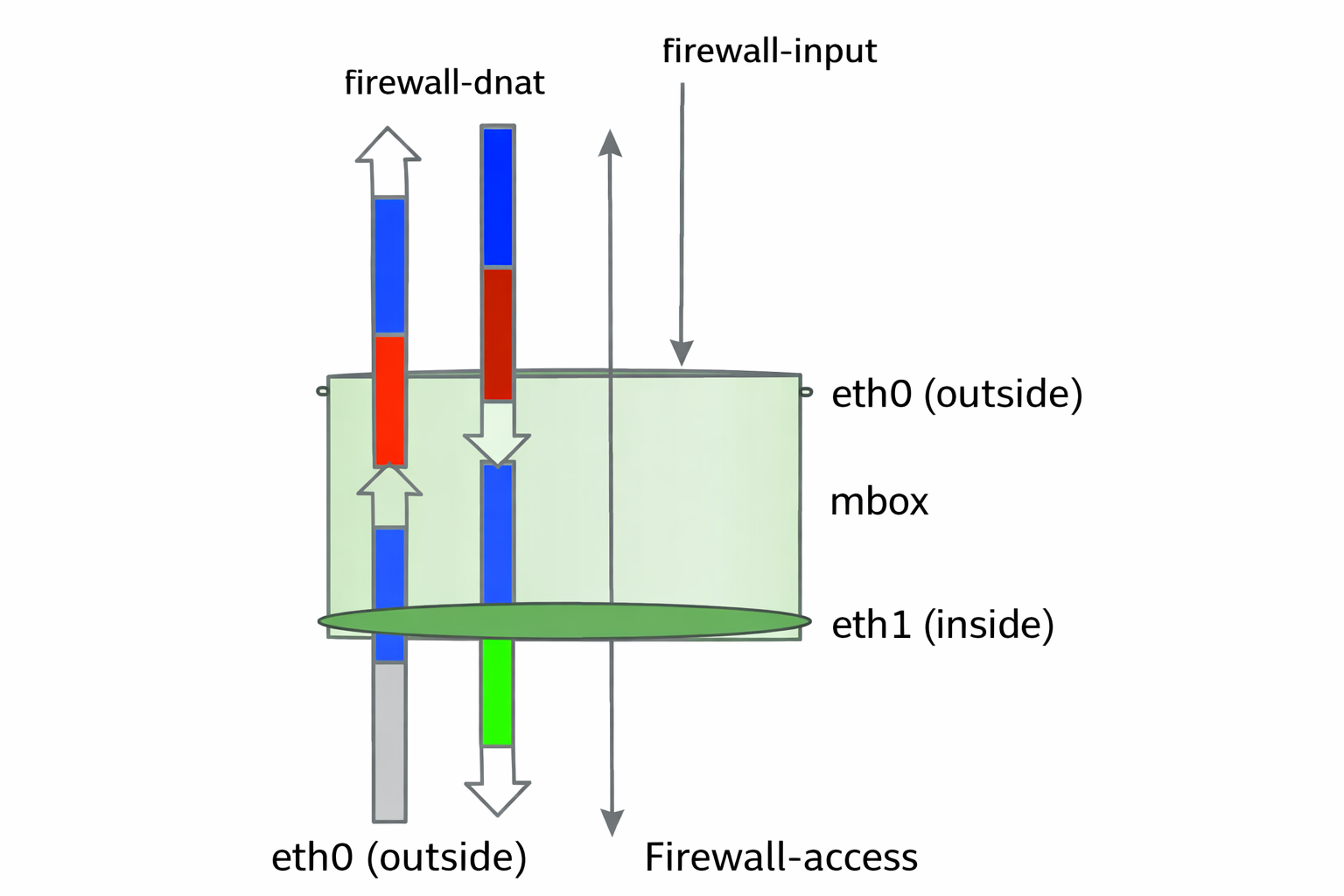

The diagram shows how the four firewall chains map to packet direction and interface zone on the router. Each chain has a distinct purpose:

Chain	Applied To	Purpose
firewall-input	Traffic destined for the router itself	Restrict access to management services — SSH, HTTPS, SNMP, API. Only authorised source IPs or networks are permitted to reach router-hosted services.
firewall-access	Traffic passing through the router (forwarded between interfaces)	Permit or deny transit traffic between network segments — LAN-to-WAN, VLAN-to-VLAN, VPN-to-LAN, etc. This is the primary chain for inter-zone access policy.
firewall-dnat	Inbound traffic — applied before the routing decision	Rewrite the destination IP and/or port of incoming packets. Used for port forwarding, DMZ access, and directing public traffic to internal servers.
firewall-snat	Outbound traffic — applied after the routing decision	Rewrite the source IP of outgoing packets. Used for PAT/masquerading (translating multiple internal hosts through a single public IP) and other source NAT scenarios.

Note

NAT rules (DNAT/SNAT) only rewrite packet addresses — they do not bypass access control. Traffic that has been NATed is still subject to firewall-access rules. Both NAT and access rules must be configured for traffic to flow end-to-end.

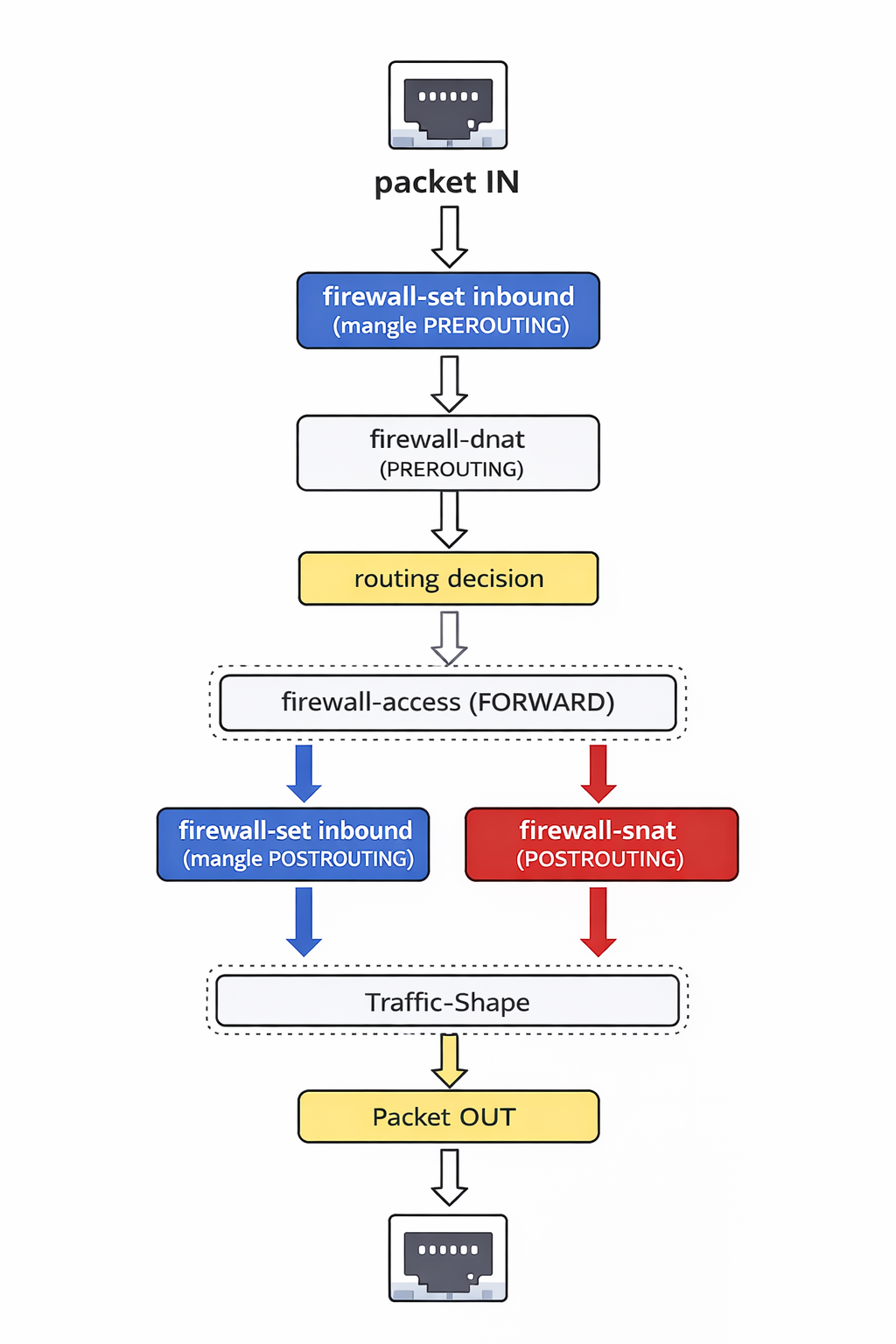

Packet Flow¶

Every packet entering the router passes through the following stages in order:

firewall-set inbound (mangle PREROUTING) — optional packet marking for QoS classification, applied before any routing decision
firewall-dnat (PREROUTING) — destination address rewriting; packets destined for a published service are redirected to the internal server at this stage
Routing decision — the kernel determines whether the packet is destined for the router itself or needs to be forwarded to another interface
firewall-access (FORWARD) — transit traffic is evaluated against the access policy; packets belonging to established sessions are automatically permitted; unmatched packets are implicitly denied
firewall-set outbound (mangle POSTROUTING) — post-routing packet marking for egress QoS
firewall-snat (POSTROUTING) — source address rewriting for outbound traffic
Traffic shaping — QoS queuing and bandwidth policies applied before transmission
Packet OUT — packet exits via the egress interface

Note

Traffic directed at the router itself (e.g. SSH, HTTPS management) exits the routing decision into the firewall-input chain rather than firewall-access. The two chains are independent — rules in one do not affect the other.

Stateful Inspection¶

The firewall tracks active connections in a state table. Once an outbound connection is established and permitted through firewall-access, all subsequent return packets belonging to that session are automatically allowed — there is no need to write explicit inbound rules for return traffic.

Packets that do not belong to an existing session are evaluated against the rule set from top to bottom. The first matching rule is applied. If no rule matches, the packet is implicitly denied.

Firewall Sections¶

The following pages cover each rule chain in detail:

Page	Chain	Use case
Access	`firewall-input` + `firewall-access`	Management access restrictions and inter-zone transit policy
DNAT	`firewall-dnat`	Port forwarding and inbound destination NAT
SNAT	`firewall-snat`	Outbound source NAT and PAT/masquerading
