Crew Wi-Fi Hotspot Management

Overview

Many vessels today provide Internet access for crew members, but authenticating users, managing accounts, enforcing usage quotas, and handling billing across a large fleet can become operationally complex — especially when crew assignments rotate between vessels and satellite connectivity is intermittent.

RansNet HotSpot Gateway (HSG) addresses these challenges by automating the end-to-end crew Internet access lifecycle. The solution integrates with COMPAS (and other crew management and payment systems via API), synchronises crew identities automatically, enforces per-user usage quotas, and allows crew members to self-purchase additional data when needed.

Crew WiFi

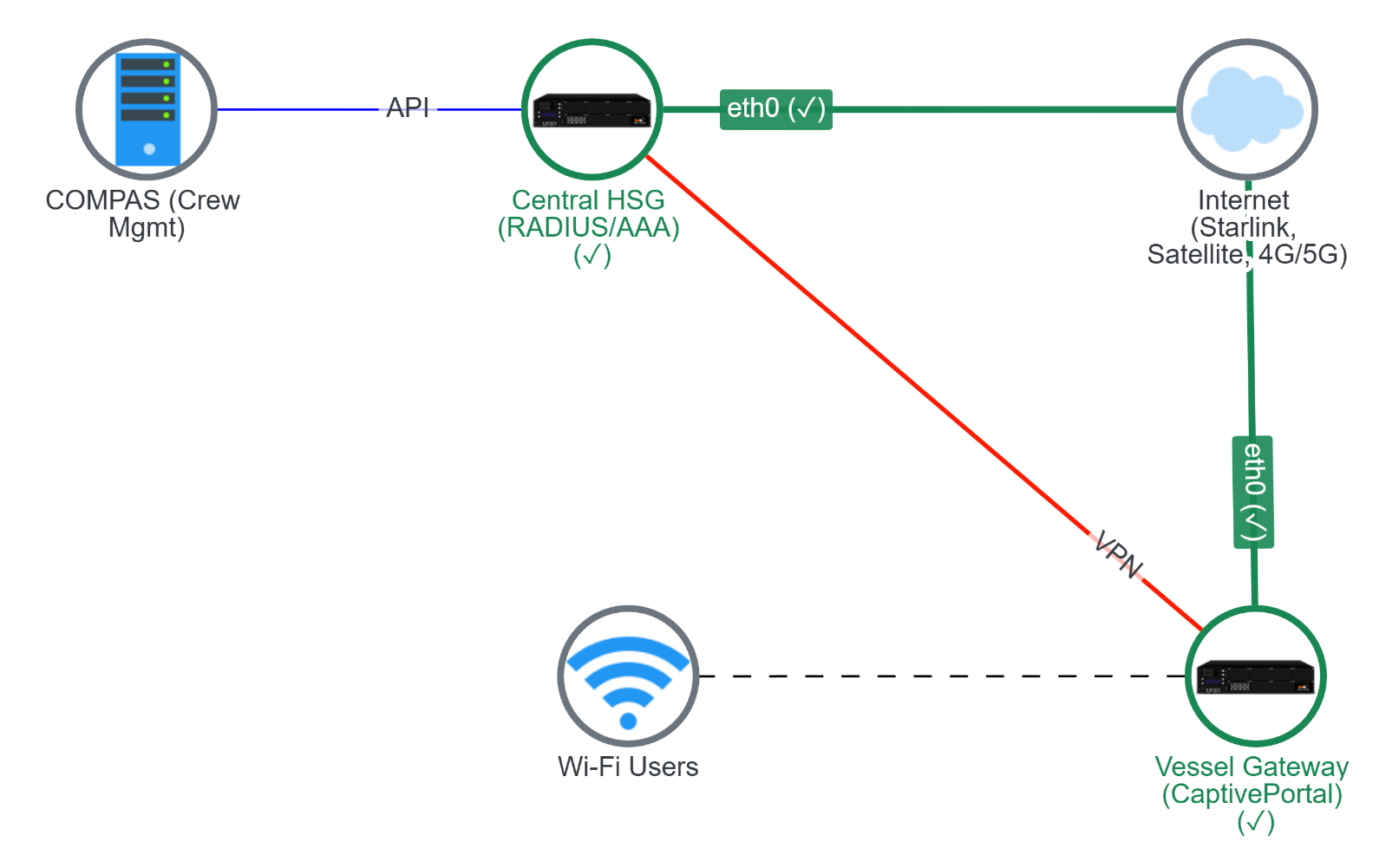

Solution Architecture

The solution uses a two-tier HSG deployment:

  • Central HSG (hardware appliance or VM) — hosted at the operator's data centre or a preferred cloud platform (Azure or AWS). This is the single source of truth for crew identity, access profiles, quota management, billing records, and API integration with COMPAS.
  • Vessel HSG (hardware appliance or VM) — deployed on board each vessel. The captive portal login page is hosted locally on the vessel HSG, ensuring a fast and responsive login experience for crew members even when satellite connectivity is limited or intermittent.

An SD-WAN VPN tunnel connects each vessel HSG back to the central HSG, providing the authentication backhaul and synchronisation path.

Key Capabilities

  • Centralised identity management — crew IDs are automatically synchronised from COMPAS to the central HSG via API, with vessel assignment determined by the crew scheduling system
  • Vessel-bound access — each crew ID is restricted to authenticate only from its currently assigned vessel network; access automatically follows the crew member's rotation schedule
  • Single device enforcement — each crew ID is permitted to be logged in from one device at a time, preventing account sharing
  • Weekly free quota — every crew member receives a configurable weekly free data quota that resets automatically on a scheduled day and time
  • Self-service top-up — crew members can purchase additional data quota directly through the captive portal; purchased quota does not expire and carries over across vessel reassignments
  • Post-billing integration — COMPAS retrieves top-up purchase records from the central HSG via API for reconciliation and billing
  • Compliance logging — Internet access logs are captured as NetFlow records on the local vessel HSG for security compliance, audit trails, and dispute investigation

Deployment

Step 1 — Deploy HSG Appliances and Build SD-WAN

  • Follow the Getting Started guide to deploy the central HSG and each vessel HSG appliance
  • Refer to the HotSpot API guide to configure API access on the central HSG for COMPAS or other crew management system integration
  • Build an SD-WAN VPN tunnel from each vessel HSG to the central HSG (refer to the SD-WAN setup guide)

Note

  • The central HSG must have a static public IP address so that vessel HSGs can establish outbound SD-WAN VPN tunnels to it
  • Vessel HSGs can use any available Internet uplink (satellite, cellular, or shore connection) to initiate the VPN tunnel to the central HSG

Step 2 — Configure Access Profiles

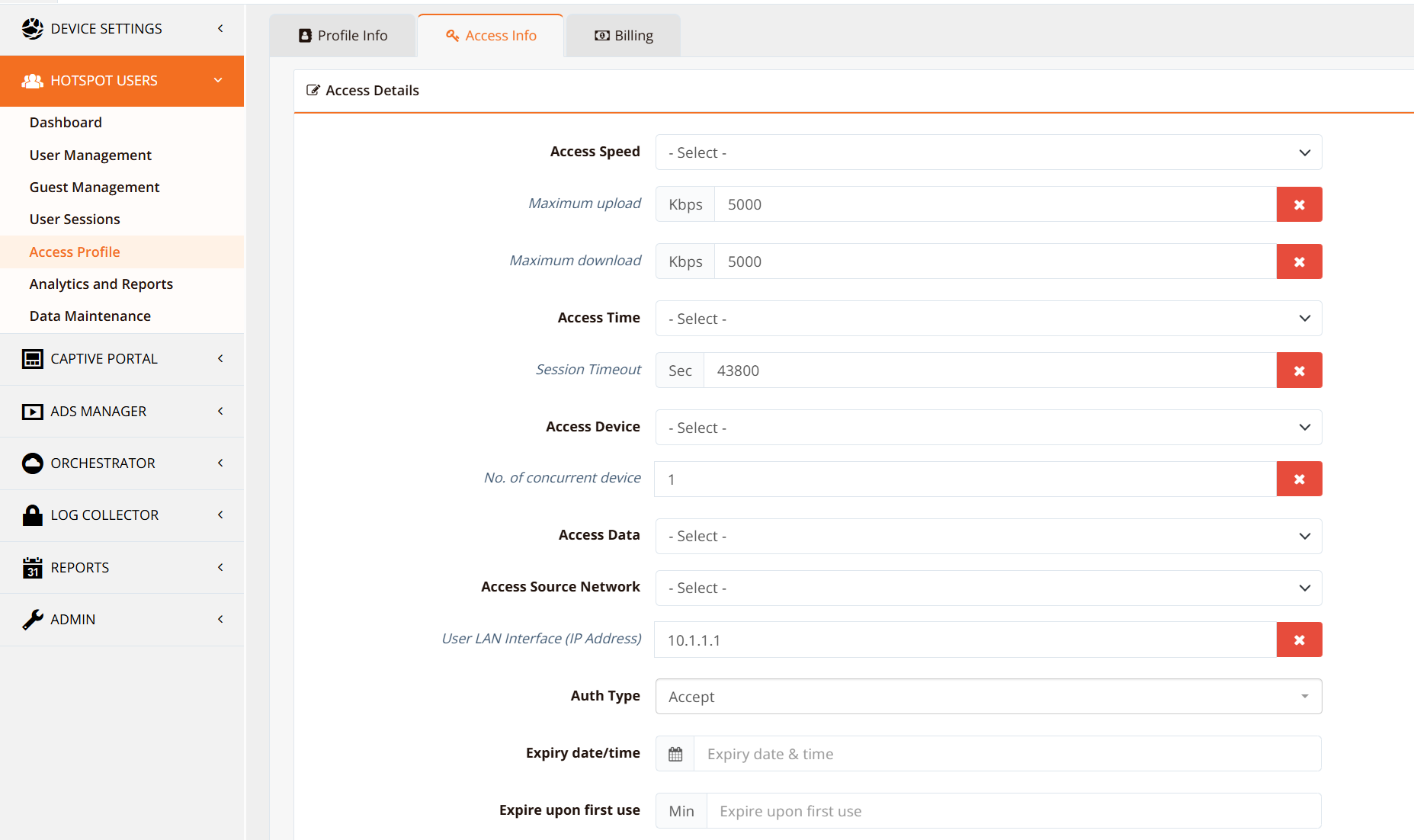

On the central HSG, create an access profile for each vessel (each profile maps to a unique Vessel ID). Configure the access rights attached to each profile, including:

  • Session timeout and idle timeout
  • Bandwidth rate limits (upstream and downstream)
  • Access control rules (permitted/blocked services or destinations)
  • Free quota allocation per period

Crew WiFi

Info

Users assigned to an access profile automatically inherit all access rights defined in that profile. Updating a profile immediately applies to all users assigned to it.

Step 3 — Create and Manage Crew Accounts

Crew accounts can be provisioned through multiple methods:

  • API automation — integrate with COMPAS or any crew management system via the HSG RESTful API to automate account creation, modification, suspension, and deletion as crew assignments change
  • Payment gateway integration — configure a payment gateway to allow crew members to self-purchase access plans directly; HSG includes built-in billing and invoicing functions
  • Manual VIP accounts — create individual accounts manually and assign them directly to an access profile
  • Voucher bulk creation — use the built-in guest management console to mass-generate and print access vouchers for distribution

Crew WiFi

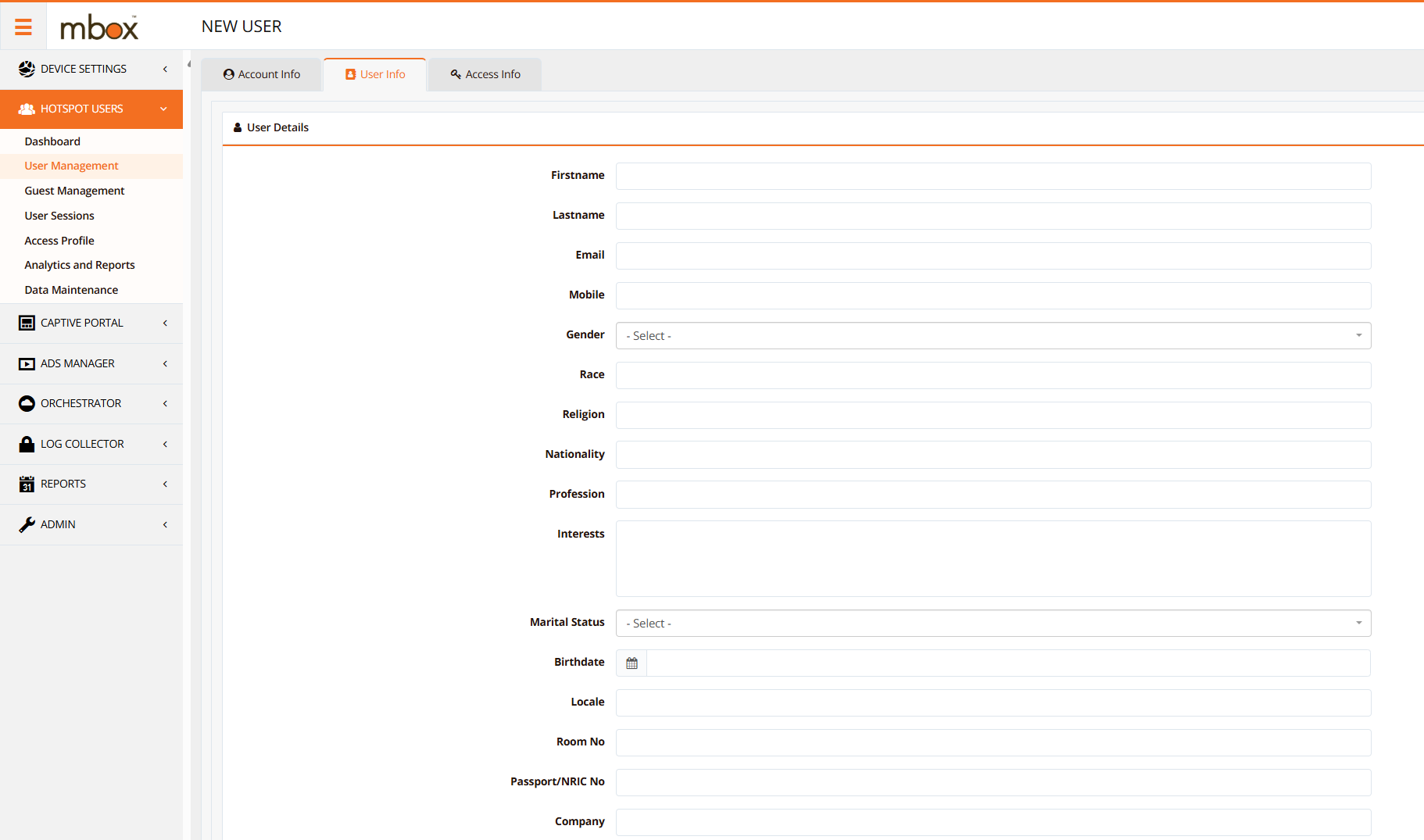

When creating user accounts, assign a user attribute (e.g. crew rank or department) to each account. This attribute is used as a matching criterion in automated quota management rules (Step 4).

Note

If automating quota management — for example, performing weekly free quota resets — it is important to assign a consistent user attribute to each account so that automation rules can accurately identify and target the correct user groups.

Step 4 — Configure Automated Quota Management

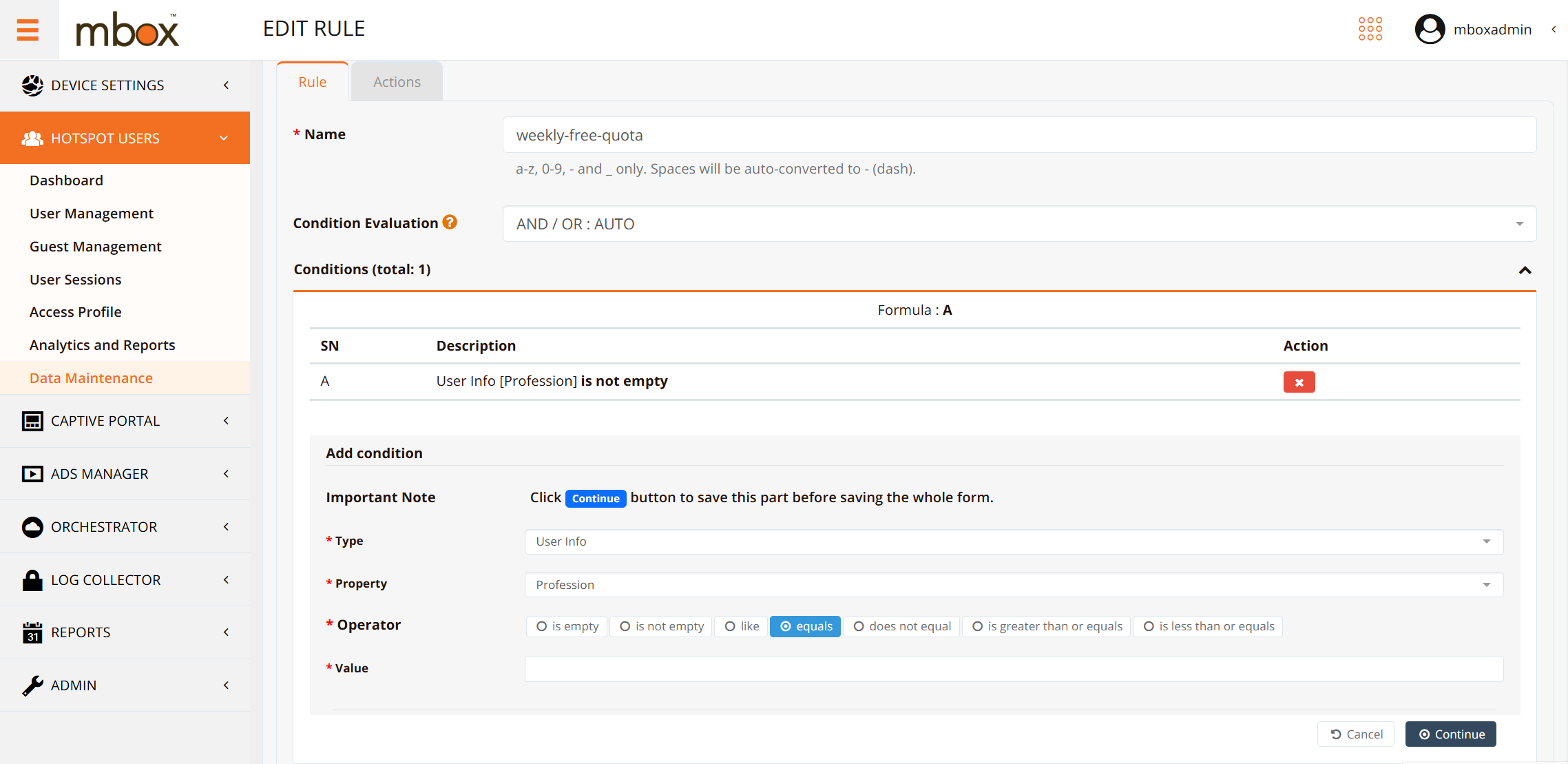

Under Data Maintenance, create automated rules to assign free data quota based on user attributes (e.g. crew rank). Rules can match on multiple criteria simultaneously, allowing differentiated quota tiers — for example, officers receiving a higher weekly allowance than ratings.

Crew WiFi

Note

  • When a user holds both a free quota allocation and purchased top-up quota, free quota is consumed first. Top-up quota is only drawn down once the free quota is exhausted.
  • A scheduled maintenance job runs every Sunday at 00:00 to purge any remaining unused free quota from the previous week, assign the new week's free quota, and carry over any remaining purchased top-up quota to the following week.

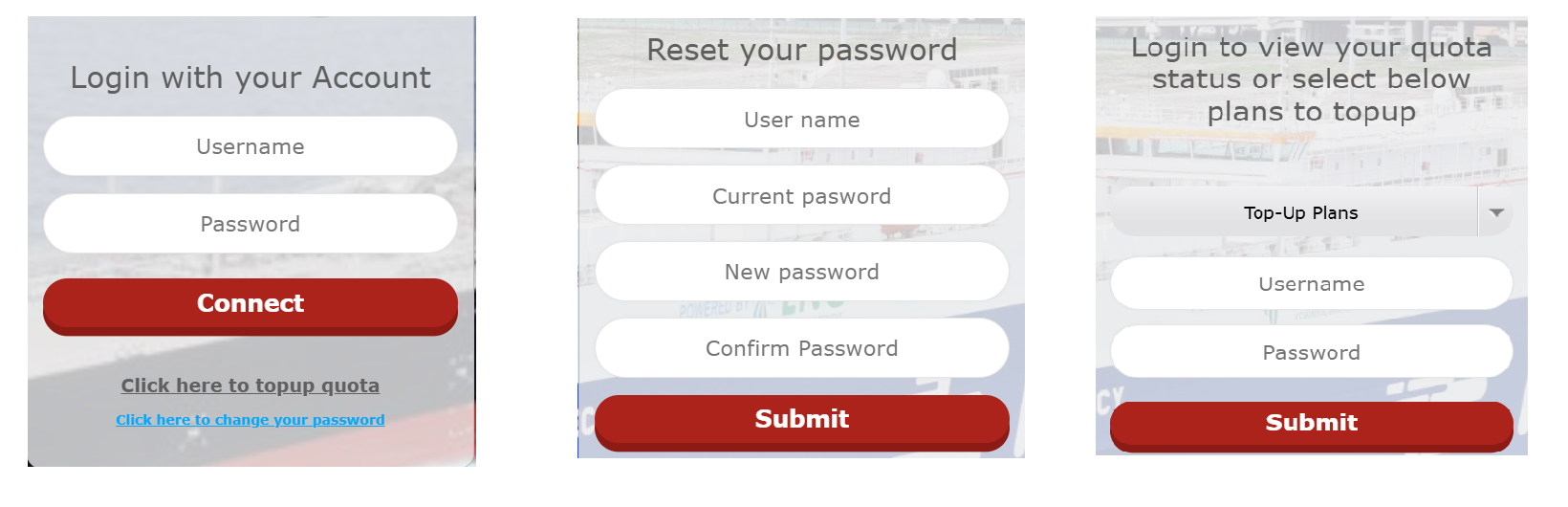

Step 5 — Create the Crew Login Portal

RansNet provides extensive captive portal capabilities with a fully customisable interface. The crew Wi-Fi portal is configured to expose the following self-service functions to crew members:

  • Quota plan selection — view available data plans and current quota balance
  • Password change — allow crew members to update their own login credentials
  • Data top-up — self-service purchase of additional data quota via the integrated payment gateway (top-up can be enabled or disabled per portal configuration)

Crew WiFi

The portal content is hosted locally on the on-board vessel HSG, providing a fast login experience independent of satellite link quality or latency.

Crew WiFi

Reporting

The HSG provides comprehensive reporting for fleet administrators and business stakeholders, covering user activity, session history, quota usage, purchase records, and detailed traffic logs.

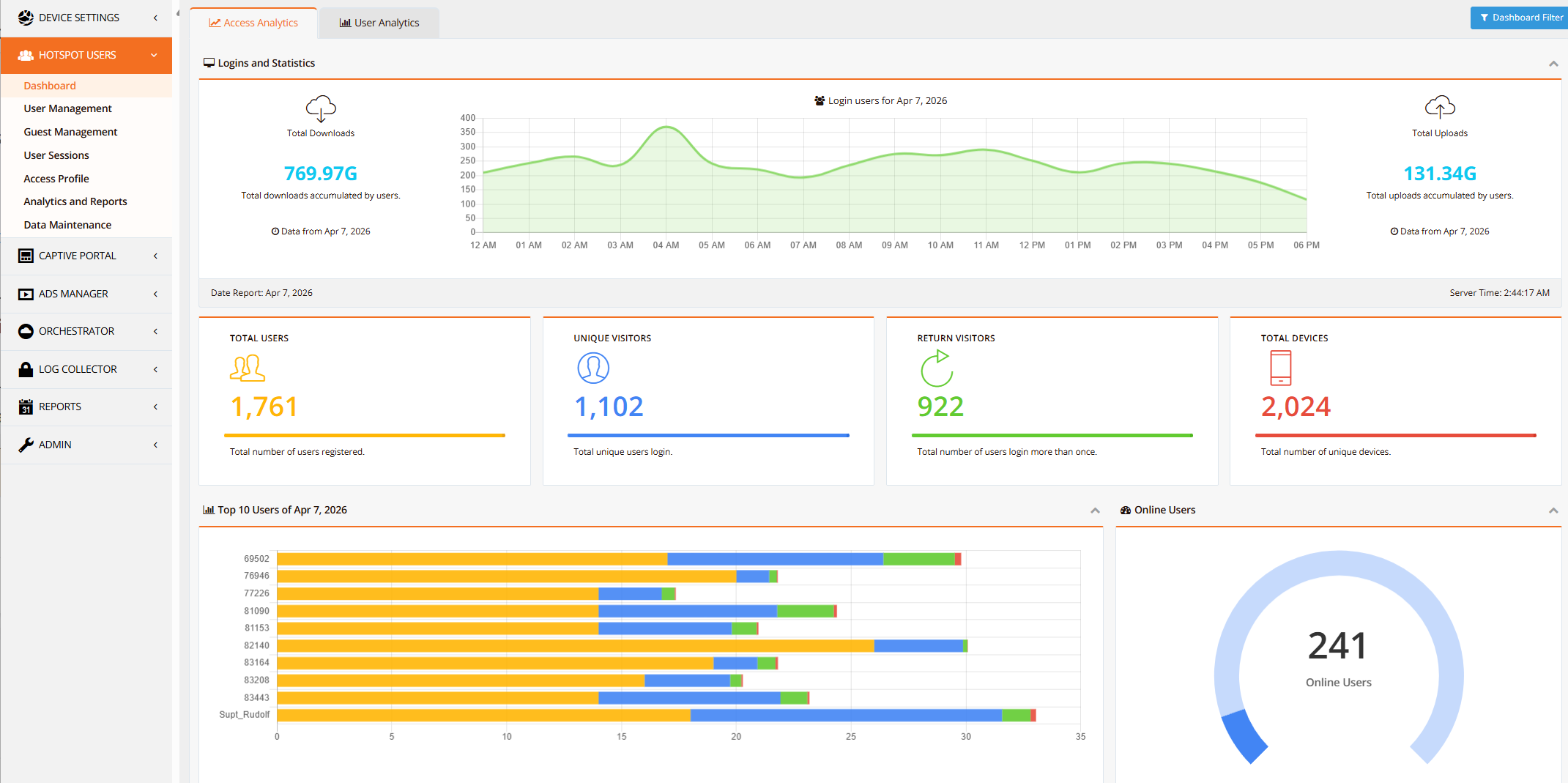

User Dashboard

A real-time overview of active sessions, connected devices, quota consumption, and system health across the fleet.

Crew WiFi

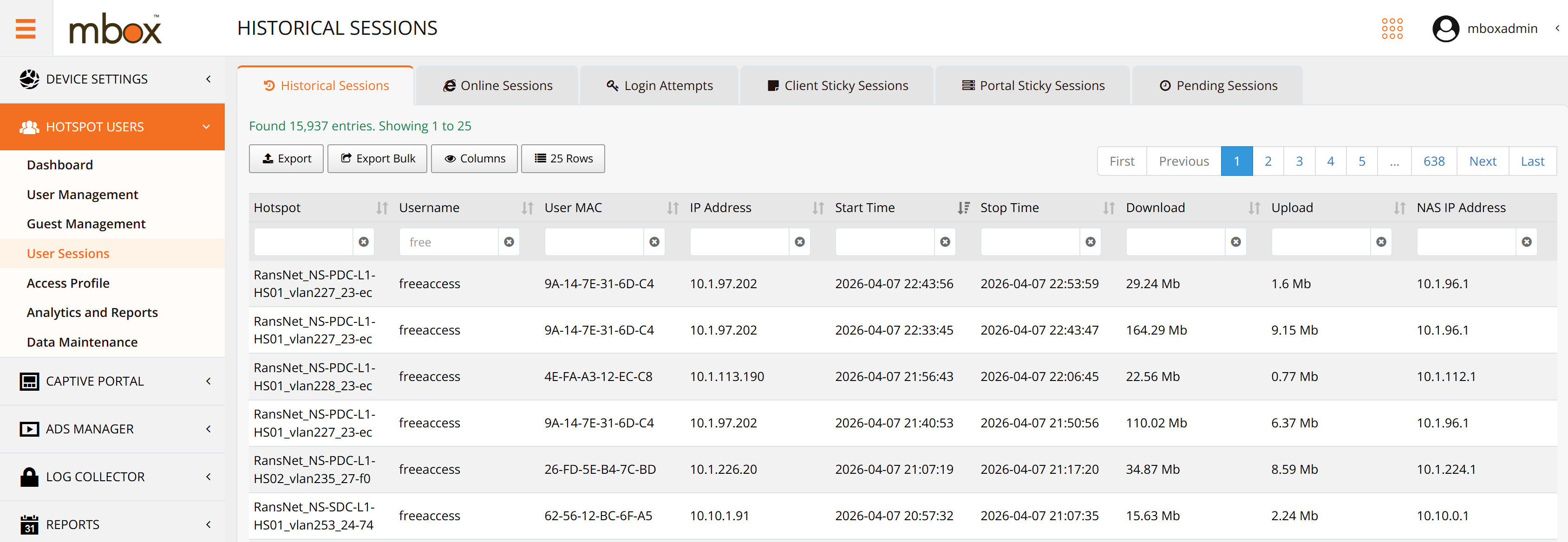

Session History

Complete historical session records per user, including login time, logout time, device, data consumed per session, and applied access profile. Used for traceability, SLA reporting, and dispute investigation.

Crew WiFi

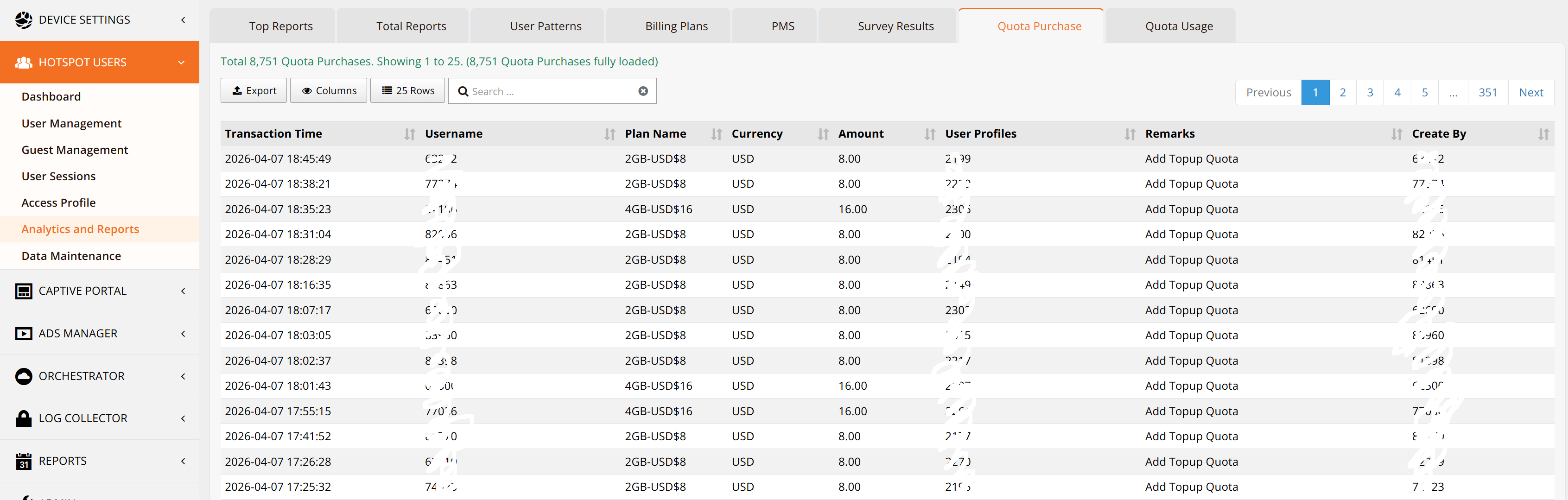

Purchase and Top-Up Records

Full billing history of all self-service data top-up transactions, including amount, plan purchased, payment method, and timestamp. Records are retrievable by COMPAS or external billing systems via the HSG API for post-billing reconciliation.

Crew WiFi

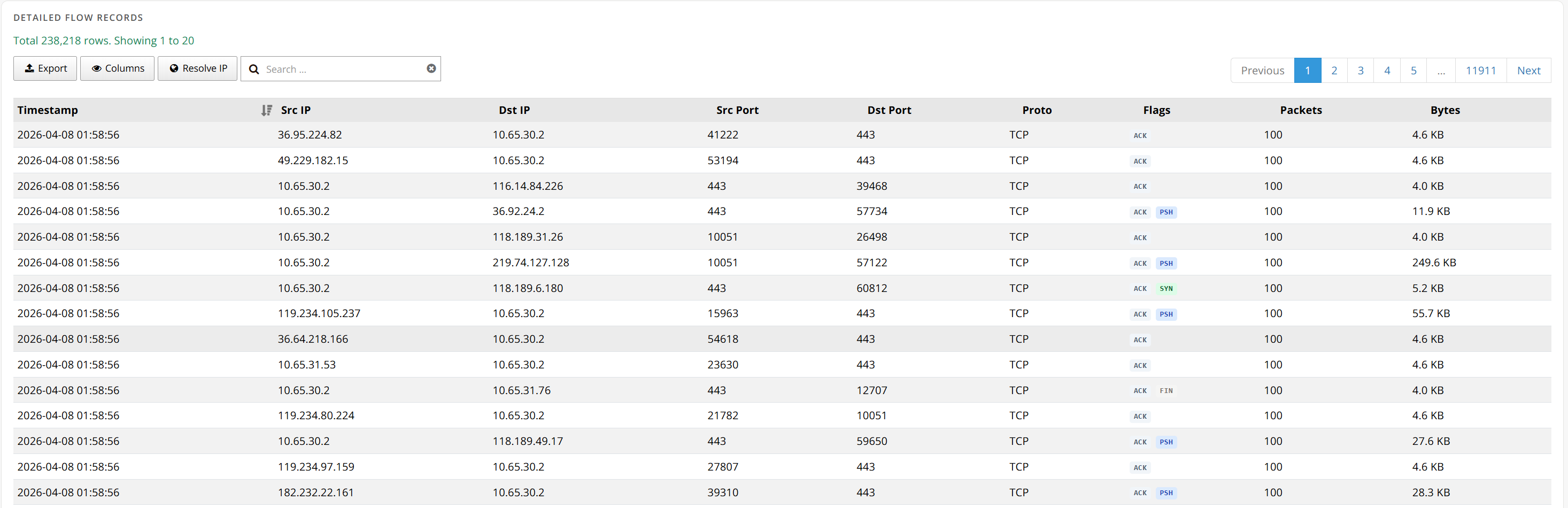

NetFlow Traffic Logs

Granular per-connection traffic records captured as NetFlow data on the local vessel HSG. Provides visibility into individual connection destinations, protocols, and data volumes — supporting deeper user behaviour analysis, security audits, and dispute resolution without relying on central connectivity.

Crew WiFi
