Wireless Monitoring

RansNet Wi-Fi monitoring provides real-time visibility into wireless performance, client experience, and access point health across distributed networks. It enables operators to detect issues such as poor signal quality, channel congestion, client instability, and bandwidth saturation before they impact user experience.

Navigate to ORCHESTRATOR → Monitoring → Wireless. Use the [Entity] button in the top-right corner to switch between entities.

The Wireless section is organized into three subtabs: WiFi Overview, WiFi APs, and WiFi Clients.


WiFi Overview

The WiFi Overview subtab provides a high-level summary of the wireless network across the selected entity.

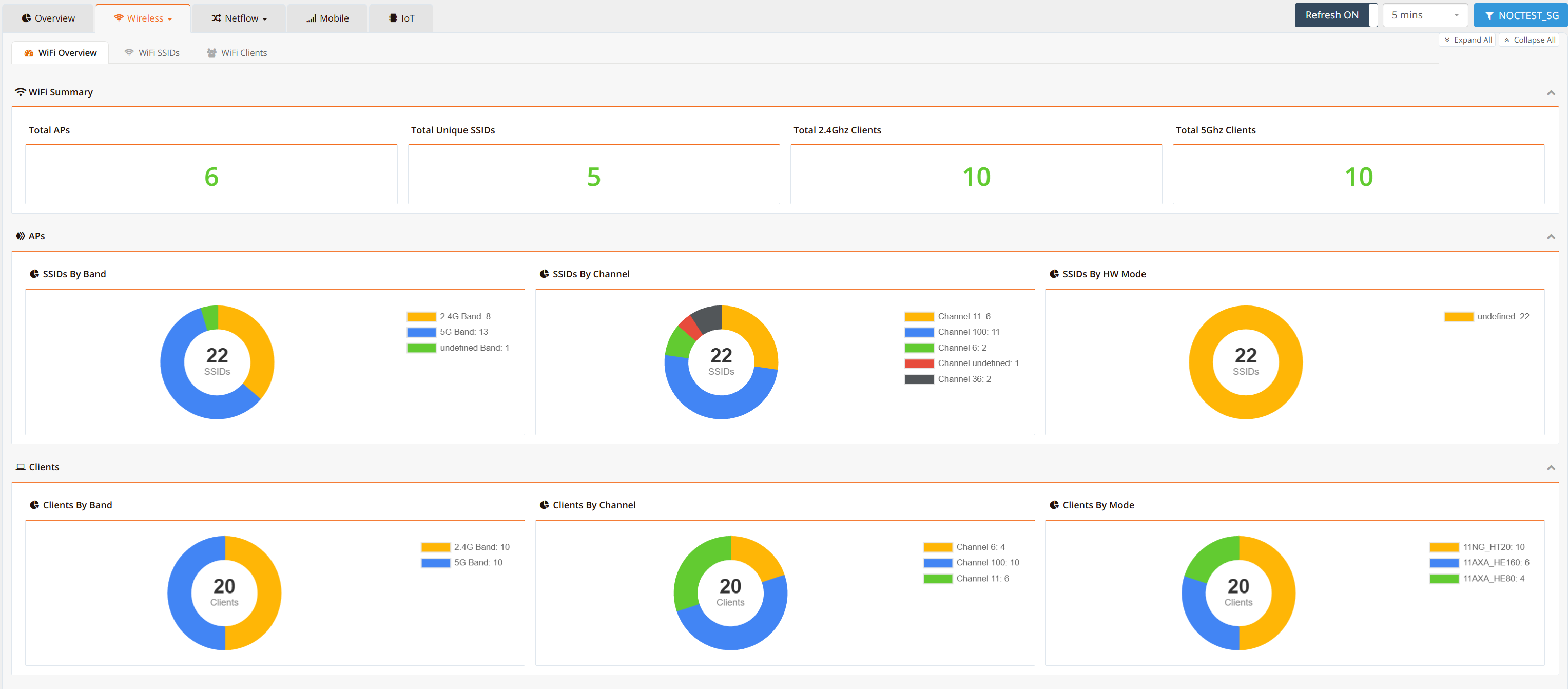

WiFi Overview

The WiFi Summary banner at the top shows four key counters:

Metric Description
Total APs Total number of access points reporting into mfusion
Total Unique SSIDs Number of distinct SSIDs across all APs
Total 2.4 GHz Clients Number of clients currently associated on the 2.4 GHz band
Total 5 GHz Clients Number of clients currently associated on the 5 GHz band

Below the summary, the APs and Clients sections each display three donut charts for distribution analysis:

APs Distribution

Chart Description
SSIDs by Band Breakdown of SSIDs operating on 2.4 GHz vs. 5 GHz
SSIDs by Channel Number of SSIDs on each active channel — useful for spotting channel congestion
SSIDs by HT Mode Distribution of wireless standards in use (e.g., 802.11n, 802.11ac/VHT)

Clients Distribution

Chart Description
Clients by Band Client count split between 2.4 GHz and 5 GHz bands
Clients by Channel Clients distributed across active channels
Clients by Mode Client breakdown by 802.11 connection mode

This view lets operators quickly assess overall network utilization, detect band/channel imbalances, and identify whether clients are connecting on optimal bands.


WiFi APs

The WiFi APs subtab provides detailed per-AP and per-SSID RF performance data.

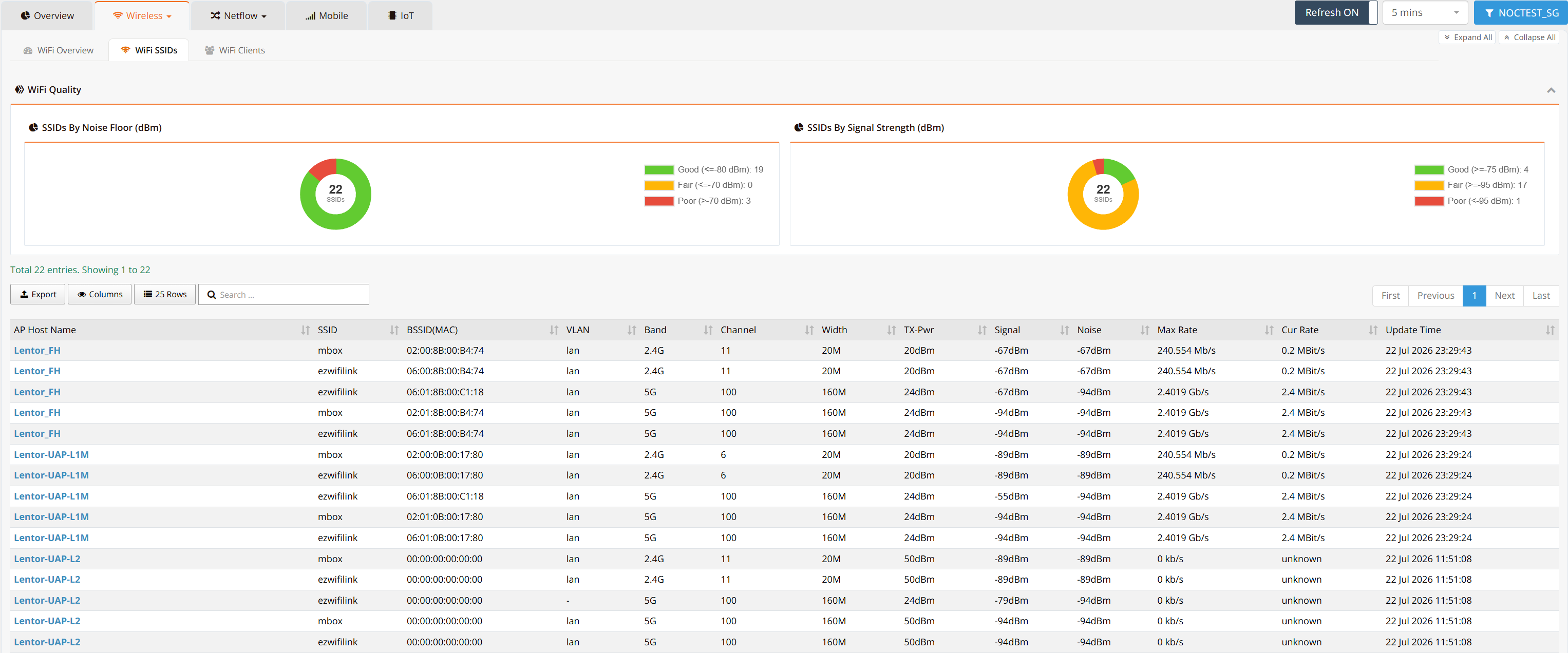

WiFi APs

The WiFi Quality panel at the top displays two signal quality donut charts:

Chart Description
SSIDs by Noise Floor (dBm) Categorizes SSIDs by ambient RF noise: Quiet (<−90 dBm), Fair (−75 to −90 dBm), Noisy (>−75 dBm)
SSIDs by Signal Strength (dBm) Categorizes SSIDs by transmit signal: Excellent (>−70 dBm), Good (−70 to −80 dBm), Fair (−75 to −85 dBm), Poor (<−75 dBm)

The AP table below lists every BSSID (per-radio, per-SSID combination) with the following columns:

Column Description
AP Host Name The mfusion hostname of the access point
BSSID (MAC) MAC address of the specific radio interface
SSID The wireless network name broadcast by this BSSID
Mode Operating mode (e.g., start, ap)
Band Frequency band — 2.4G or 5G
Channel Active channel number
Width Channel width in MHz (e.g., 20, 40, 80)
Tx Plan Configured transmit power or rate plan
Signal Received signal level in dBm
Noise Ambient noise floor in dBm
Max Rate Maximum negotiated PHY rate (Mbps)
Cur Rate Current active data rate (Mbps)
Update Time Timestamp of the last data refresh

Tip

A high noise floor (above −75 dBm) alongside a low current rate relative to max rate typically indicates RF interference or channel congestion. Consider switching to a less congested channel or enabling band steering to 5 GHz.


WiFi Clients

The WiFi Clients subtab provides per-client connection quality and traffic data for all currently associated wireless clients.

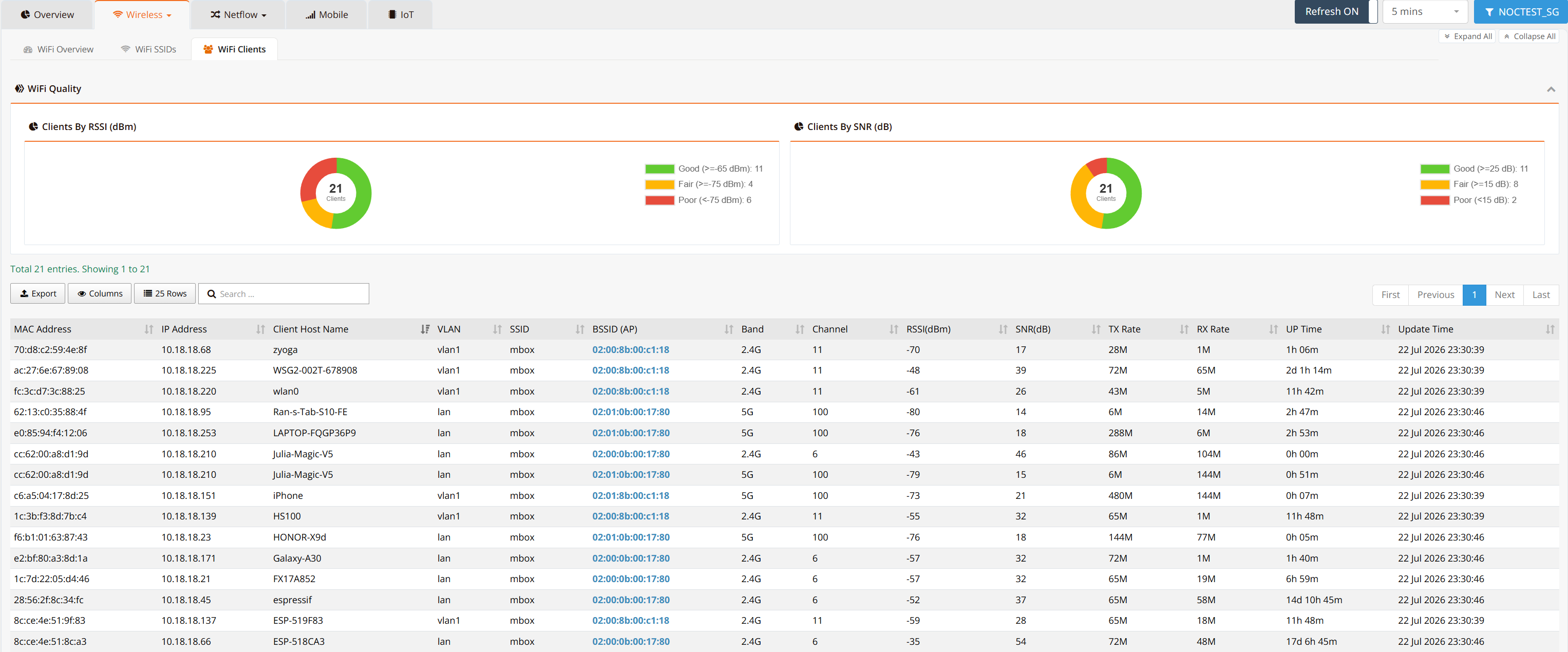

WiFi Clients

The WiFi Quality panel at the top displays two client quality donut charts:

Chart Description
Clients by RSSI (dBm) Signal strength experienced by each client: Good (>−60 dBm), Fair (−60 to −75 dBm), Poor (<−75 dBm)
Clients by SNR (dB) Signal-to-noise ratio per client: Good (>30 dB), Fair (10–30 dB), Poor (<10 dB)

The client table lists every associated client with the following columns:

Column Description
AP Host Name The access point the client is currently associated with
MAC Address Client device MAC address
IP Address IP address assigned to the client
VLAN VLAN the client is placed on
SSID The wireless network the client is connected to
Band Frequency band in use — 2.4G or 5G
Channel Channel the client is associated on
RSSI (dBm) Received signal strength at the AP — closer to 0 is stronger
SNR (dB) Signal-to-noise ratio — higher values indicate a cleaner connection
TX Rate Downlink data rate from AP to client (Mbps)
RX Rate Uplink data rate from client to AP (Mbps)
UP Time Duration since the client associated
Update Time Timestamp of the last data refresh

Tip

Clients with RSSI below −75 dBm or SNR below 10 dB are likely experiencing poor throughput and connection instability. These clients may benefit from being roamed to a closer AP or steered to the 5 GHz band if in range.
